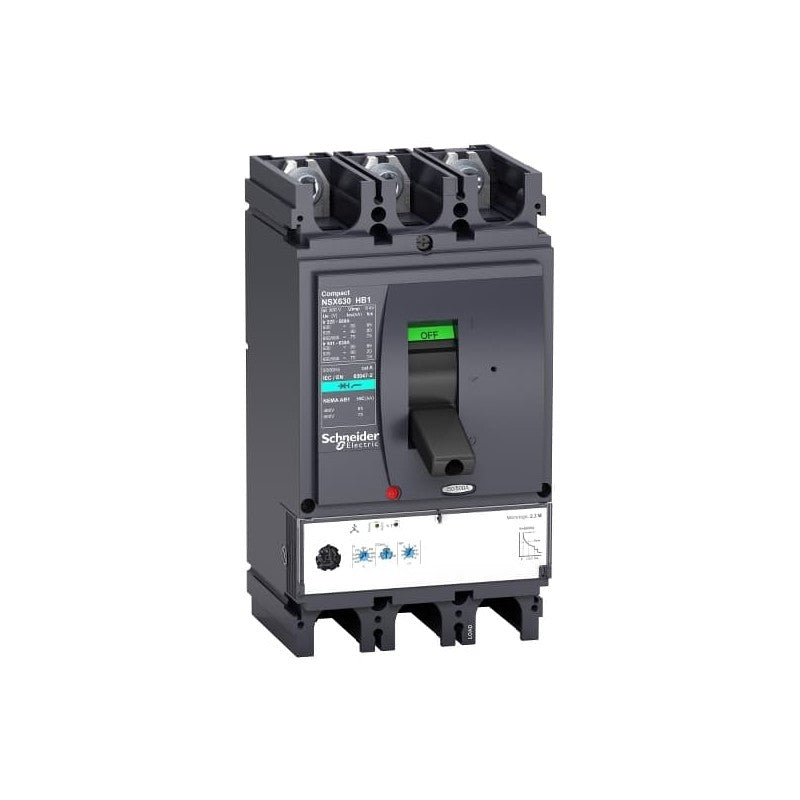

The Schneider Electric Compact NSX630HB1 is a three-pole circuit breaker designed for robust electrical protection in industrial environments. This unit features a Micrologic 2.3 M trip unit with a 500 A rating, providing advanced thermal-magnetic protection. It is engineered to interrupt faults up to 85 kA at 500 VAC, ensuring safety and operational continuity in demanding applications.

Technical details

• Series: Compact NSX
• Model: NSX630HB1
• Trip Unit: Micrologic 2.3 M
• Current Rating: 500 A
• Poles: 3
• Interrupting Capacity: 85 kA at 500 VAC
• Configuration: 3d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is suitable for use in motor control centers, power distribution panels, and main incoming feeders for manufacturing facilities. It is commonly integrated into systems requiring reliable overcurrent and short-circuit protection, such as those found in food and beverage processing, automotive manufacturing, and material handling equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433723 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
