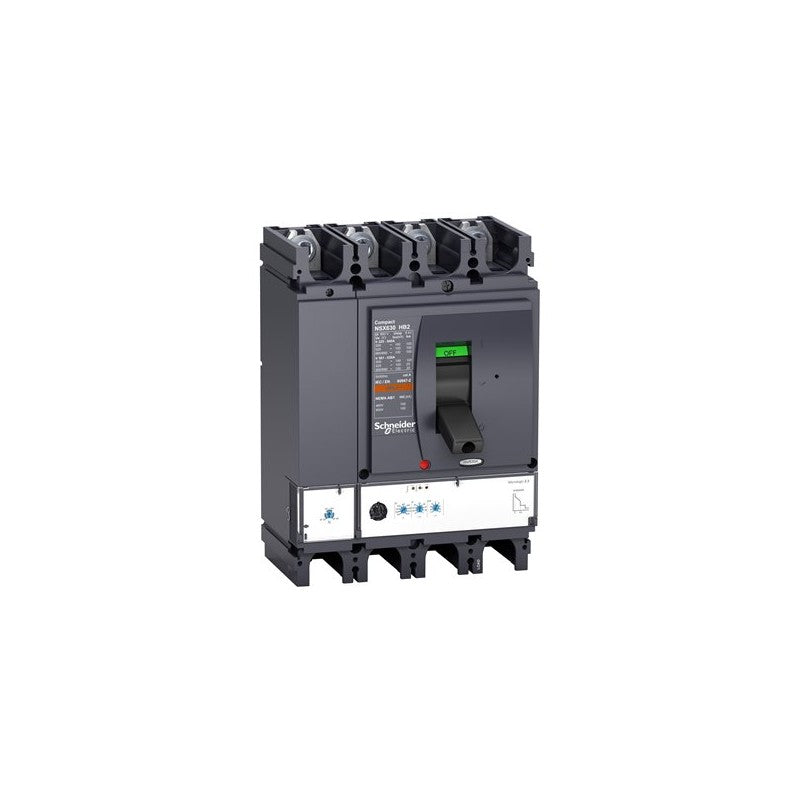

The Schneider Electric Compact NSX630HB2 circuit breaker is engineered for robust protection in demanding industrial environments. As a key component within the NSX series, this 4-pole breaker offers a high interrupting capacity of 85 kA at 500 VAC, ensuring safety and operational continuity. It features the Micrologic 2.3 electronic trip unit, providing advanced protection and control capabilities for circuits up to 630 Amperes.

Technical details

• Series: Compact NSX
• Model: NSX630HB2
• Trip Unit: Micrologic 2.3
• Rated Current: 630 A
• Number of Poles: 4d (4 poles)
• Interrupting Capacity: 85 kA at 500 VAC
• Voltage Rating: 500 VAC
• Protection Functions: Overload, short-circuit, ground-fault (refer to Micrologic 2.3 datasheet for full details)

Applications & compatibility

This circuit breaker is suitable for main distribution, motor feeder protection, and generator feeder applications in various industrial settings. It is commonly integrated into control panels, power distribution units, and motor control centers for machinery such as packaging lines, material handling systems, and process control equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433741 or contact our technical team for cross-reference assistance with compatible NSX series components.
