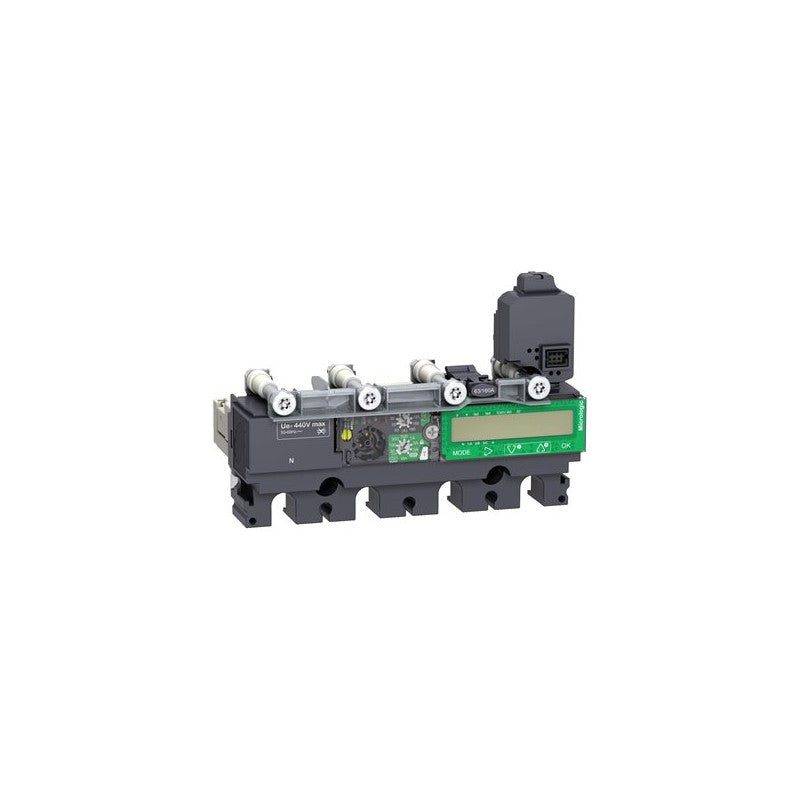

The Schneider Electric Micrologic 7.2 E trip unit is an electronic control module designed for Compact NSX 160/250 circuit breakers. This specific unit is configured for 160A applications and features a 4-pole, 4d (neutral protection) configuration. It integrates advanced electronic trip functions to provide precise overcurrent and ground fault protection for electrical distribution systems.

Technical details

• Series: Micrologic 7.2 E
• Type: Electronic Trip Unit
• Current Rating: 160 Amperes
• Poles: 4
• Neutral Protection: 4d (Neutral Protection)
• Compatible Circuit Breaker Series: Compact NSX 160/250
• Protection Functions: Overcurrent, Ground Fault (specific settings to be confirmed via datasheet)
• Control Type: Electronic

Applications & compatibility

This Micrologic 7.2 E trip unit is essential for protecting electrical circuits in a wide range of industrial and commercial applications. It is commonly found in motor control centers, power distribution panels, and machinery requiring robust and adjustable overcurrent protection, such as in manufacturing plants, data centers, and building services.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433881 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
