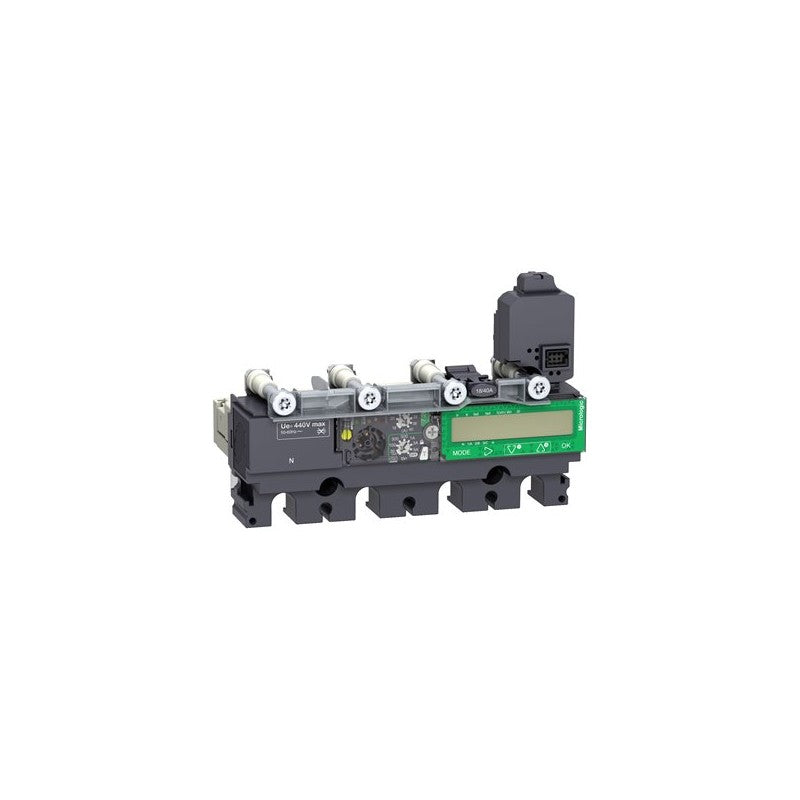

The Schneider Electric Micrologic 7.2 E AL trip unit is designed for use with Compact NSX 100, 160, and 250 series circuit breakers. This electronic trip unit provides advanced protection and control capabilities for electrical distribution systems. It is specifically engineered for applications requiring precise current monitoring and fault interruption.

Technical details

• Series: Micrologic 7.2 E AL
• Type: Electronic Trip Unit
• Rating: 40A
• Poles: 4-pole (4d configuration)
• Compatibility: Schneider Electric Compact NSX 100/160/250 circuit breakers
• Protection Functions: Includes Earth Leakage (AL) protection
• Control Features: Advanced electronic trip unit functionality

Applications & compatibility

This trip unit is essential for ensuring the safe and reliable operation of electrical circuits in commercial and industrial environments. It is commonly integrated into power distribution panels, motor control centers, and machinery requiring robust overcurrent and earth fault protection, such as in manufacturing plants, data centers, and building management systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433898 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
