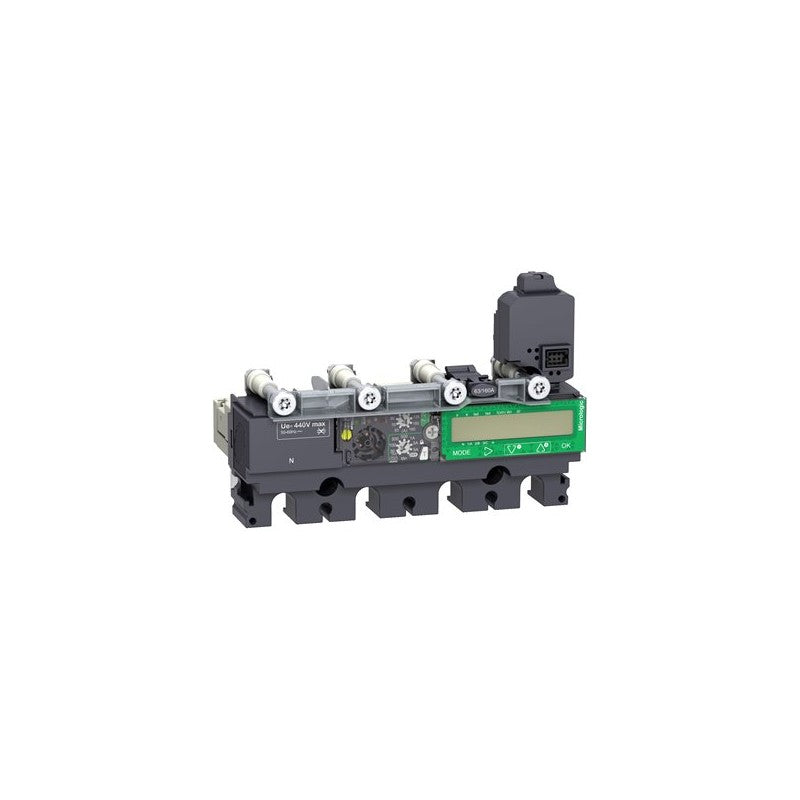

The Schneider Electric Micrologic 7.2 E AL trip unit is designed for use with Compact NSX 160/250 series circuit breakers. This electronic trip unit provides advanced protection and control capabilities for electrical distribution systems. It is specifically engineered for 4-pole circuit breakers, offering comprehensive circuit monitoring and fault interruption.

Technical details

• Trip Unit Type: Micrologic 7.2 E AL
• Series Compatibility: Schneider Electric Compact NSX 160/250
• Number of Poles: 4
• Protection Type: Electronic
• Current Rating: 160A
• Ground Fault Protection: Yes (indicated by 'AL' in the model number, typically signifying Earth Leakage protection)
• Advanced Features: Includes Earth Leakage (AL) protection functionality.
• Control Functions: Provides adjustable settings for overcurrent protection parameters.

Applications & compatibility

This trip unit is essential for applications requiring robust circuit protection and monitoring in industrial and commercial power distribution systems. It is commonly found in control panels for machinery, building electrical systems, and power distribution boards where precise fault detection and interruption are critical for safety and operational continuity.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433900 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
