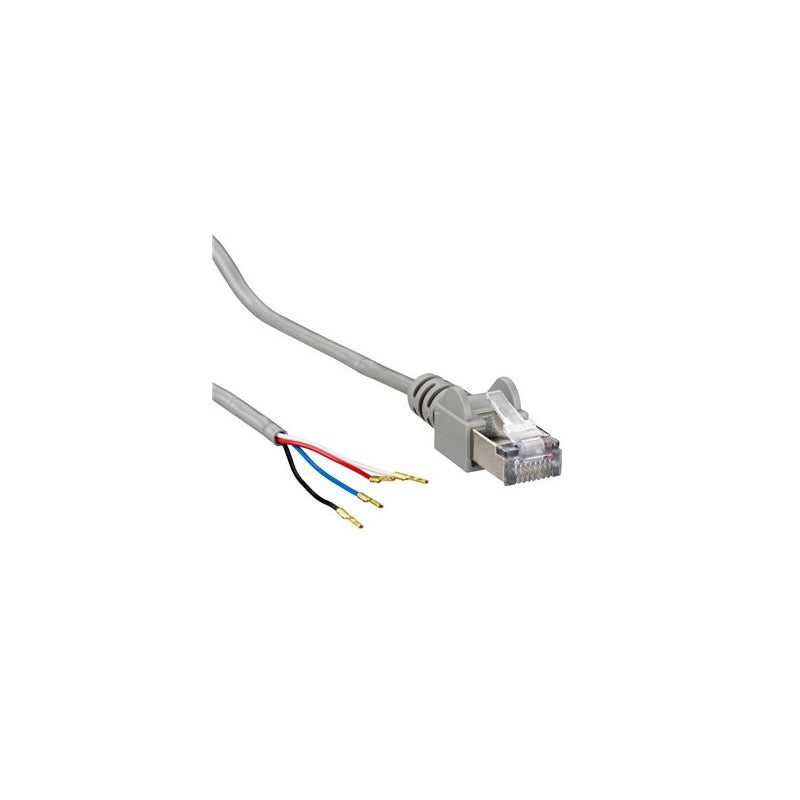

This Schneider Electric ULP cord, identified by part number LV434196, serves as a critical connection component for specific circuit breaker families. It is designed for use with the Compact NS series and the Masterpact NT/NW series of circuit breakers, facilitating essential communication and control functions within these power distribution systems. The 1.3-meter length provides adequate reach for typical installations.

Technical details

• Series Compatibility: Compact NS, Masterpact NT/NW
• Product Type: Ultra-Logic (ULP) Cord
• Cable Length: 1.3 meters
• Connector Type: Specific ULP connector (verify against manufacturer datasheet for exact pin configuration)
• Functionality: Enables communication and control between circuit breaker modules and associated control units.
• Voltage Rating: Not explicitly determinable from part number; consult manufacturer datasheet for specific voltage handling capabilities.
• Current Rating: Not explicitly determinable from part number; consult manufacturer datasheet for specific current handling capabilities.

Applications & compatibility

This ULP cord is integral to the operation of Schneider Electric's Compact NS and Masterpact NT/NW circuit breaker systems. It is commonly found in industrial power distribution panels, motor control centers, and building management systems where reliable communication and control of high-capacity circuit breakers are paramount. Its application ensures proper signaling for protection, monitoring, and remote operation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV434196 or contact our technical team for cross-reference assistance with compatible Schneider Electric circuit breaker components.
