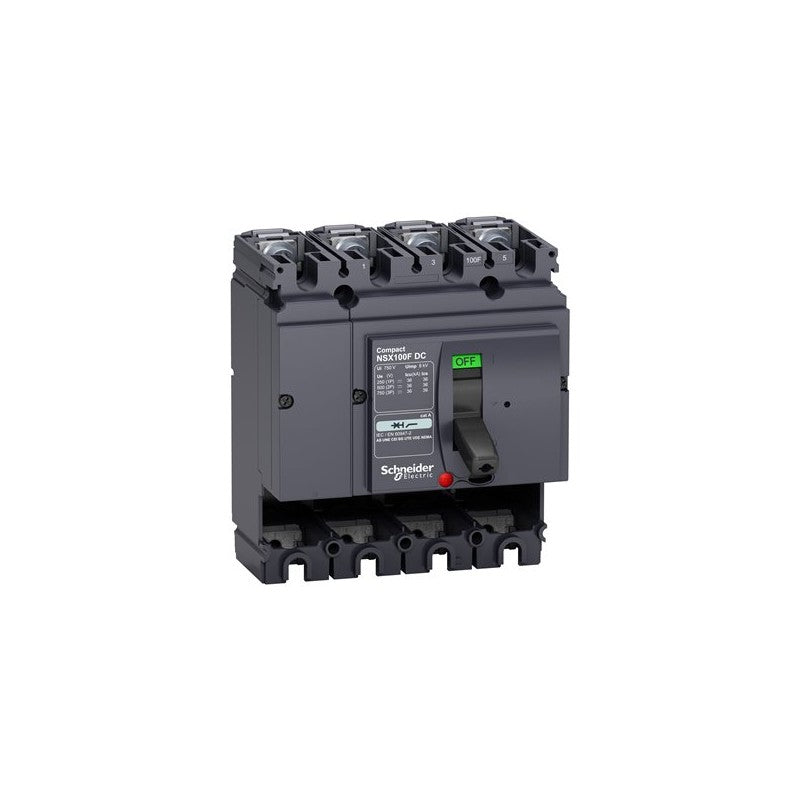

The Schneider Electric Compact NSX100F DC is a 4-pole circuit breaker designed for DC power distribution and protection. This fixed-mounted unit is rated for 100 Amperes and is part of the widely recognized Compact NSX series, commonly integrated into DC power control panels and industrial machinery requiring robust circuit interruption.

Technical details

• Series: Compact NSX
• Type: DC Circuit Breaker
• Poles: 4
• Current Rating: 100 A
• Mounting Type: Fixed
• Trip Unit: Not included (requires separate purchase or integration with compatible trip unit)
• Voltage Class: Specific DC voltage rating should be verified against manufacturer datasheet for application suitability.
• Interrupting Capacity: Specific DC interrupting capacity should be verified against manufacturer datasheet.

Applications & compatibility

This circuit breaker is suitable for DC power circuits in applications such as renewable energy systems (e.g., solar inverters), battery storage systems, DC motor drives, and industrial control panels. Its 4-pole configuration makes it ideal for applications requiring the switching of both positive and negative DC conductors, along with additional poles for signaling or auxiliary functions.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438008 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
