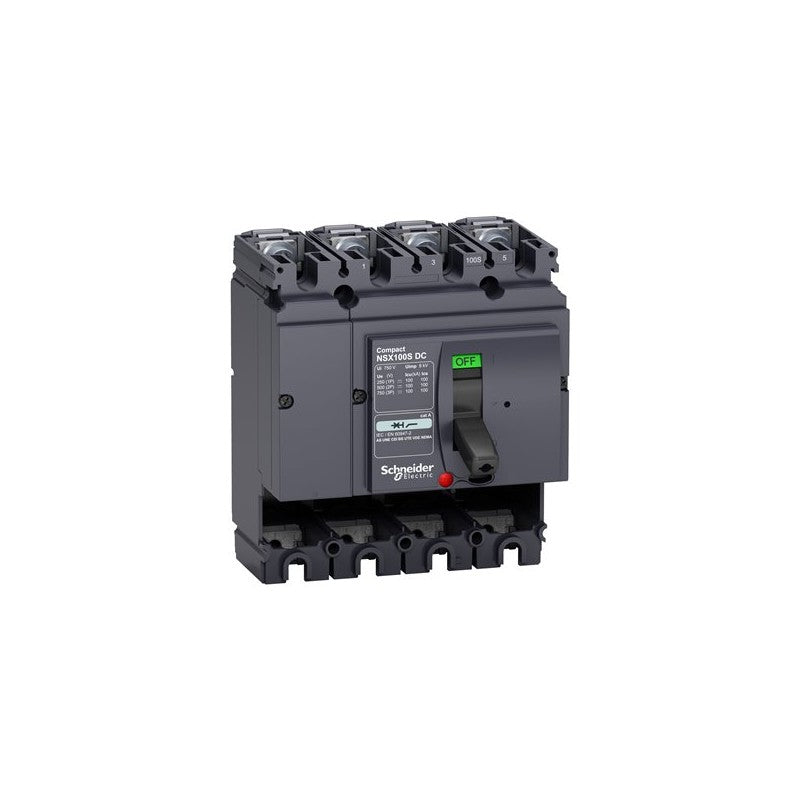

The Schneider Electric Compact NSX100S DC is a 4-pole circuit breaker designed for DC power distribution and protection applications. This fixed-mounted breaker is part of the Compact NSX series, known for its robust construction and reliable performance in demanding industrial environments. It is engineered to provide essential overcurrent protection for DC circuits.

Technical details

• Series: Compact NSX
• Type: DC Circuit Breaker
• Poles: 4
• Current Rating: 100 A
• Mounting: Fixed
• Trip Unit: Not included (requires separate purchase or integration with compatible trip unit)
• Voltage Class: DC (specific voltage rating to be confirmed via manufacturer datasheet)
• Interrupting Capacity: To be confirmed via manufacturer datasheet

Applications & compatibility

This 4-pole DC circuit breaker is suitable for use in various DC power systems, including industrial control panels, renewable energy installations, and DC motor drives. It provides essential protection for equipment and personnel in applications requiring reliable DC circuit interruption. Compatibility with specific DC systems and trip units should be verified against the Schneider Electric technical documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438019 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
