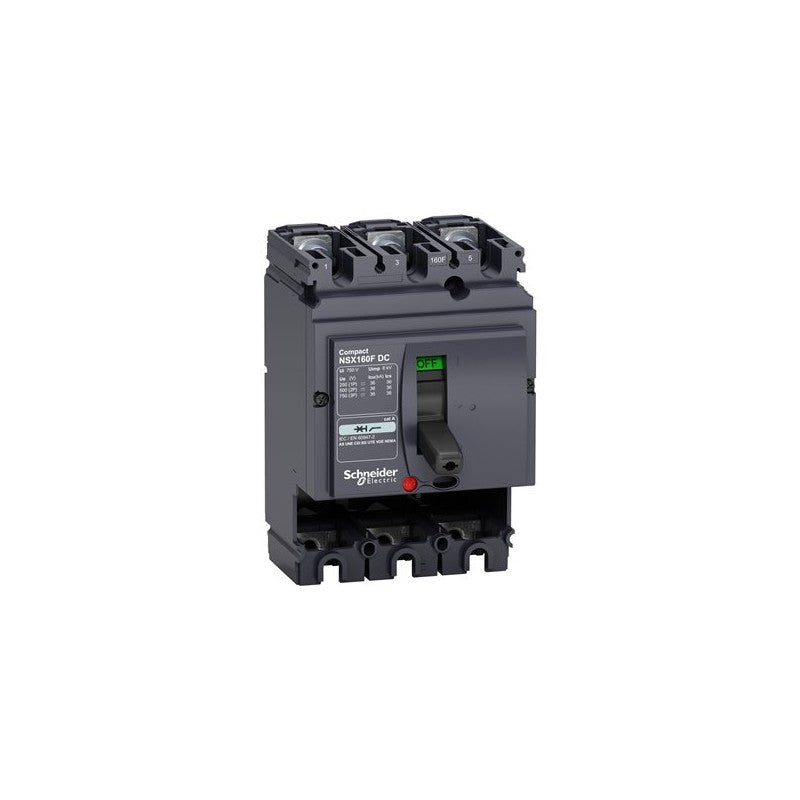

The Schneider Electric Compact NSX160F DC circuit breaker is designed for DC power distribution and protection in demanding industrial environments. This 3-pole breaker, part of the Compact NSX series, offers a robust 36 kA interrupting capacity at 750 VDC, ensuring safety and reliability in high-fault current situations. It is engineered for applications requiring precise overcurrent protection without an integrated trip unit, allowing for flexible system design.

Technical details

• Series: Compact NSX
• Model: NSX160F DC
• Poles: 3
• Rated Current: 160 A
• Rated Voltage: 750 VDC
• Interrupting Capacity: 36 kA at 750 VDC
• Trip Unit: Not included (requires external trip unit selection)
• Configuration: DC circuit breaker

Applications & compatibility

This circuit breaker is suitable for DC power systems found in renewable energy installations, battery storage systems, electric vehicle charging infrastructure, and industrial DC motor control applications. Its compatibility with external trip units allows for customization to meet specific protection coordination requirements within these systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438103 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
