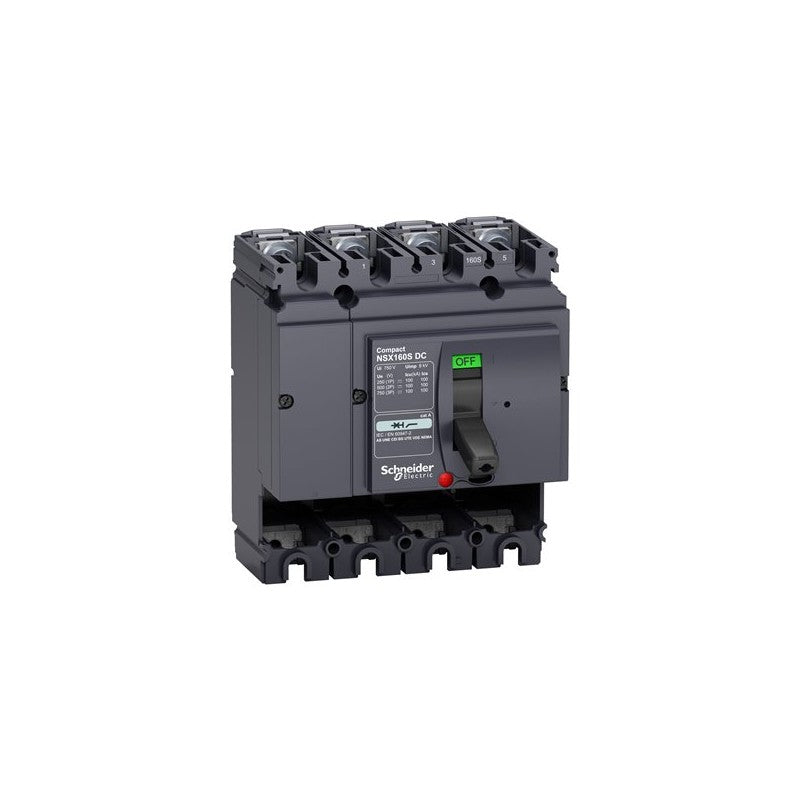

The Schneider Electric Compact NSX160S DC is a 4-pole circuit breaker designed for DC power distribution and protection. This model, rated for 160 Amperes, is a component within the widely recognized Compact NSX series, known for its robust construction and reliable performance in demanding industrial environments. It serves as a critical safety device in DC power systems, preventing damage from overcurrent and short circuits.

Technical details

• Series: Compact NSX
• Type: DC Circuit Breaker
• Poles: 4
• Current Rating: 160 A
• Trip Unit: Not included (requires separate purchase or integration with compatible trip unit)
• Voltage Class: DC (specific voltage rating to be verified against manufacturer datasheet)
• Mounting Type: DIN rail or panel mount (verify against datasheet)
• Terminal Type: Screw terminals (verify against datasheet)

Applications & compatibility

This Schneider Electric circuit breaker is suitable for applications requiring reliable DC circuit protection, including renewable energy systems such as solar power installations, DC motor control circuits, and battery storage systems. Its 4-pole configuration makes it ideal for systems with multiple conductors requiring simultaneous switching or protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438119 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
