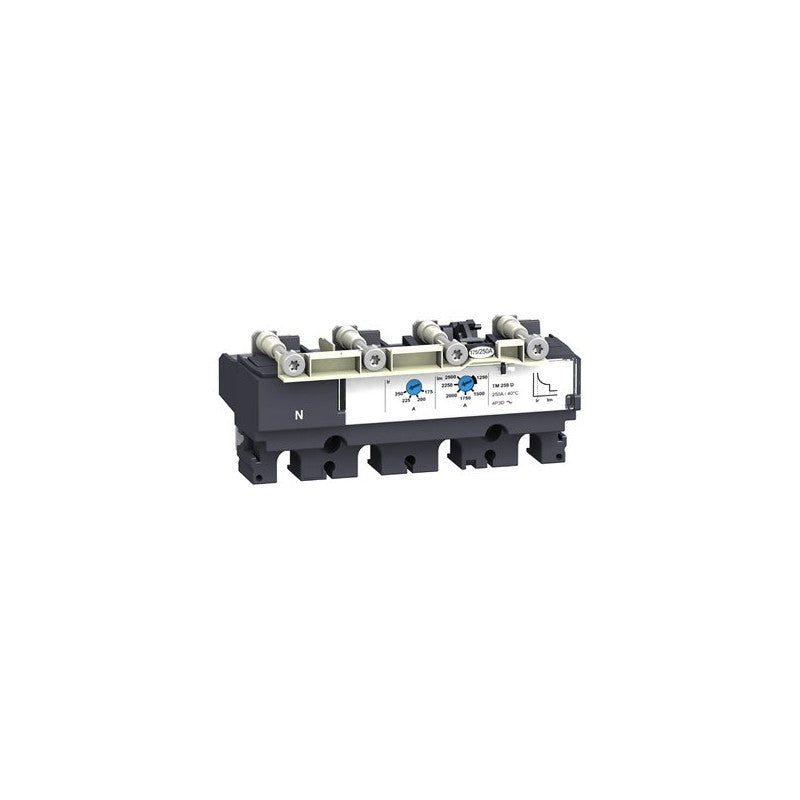

The Schneider Electric Compact NSX 160 DC is a thermal magnetic trip unit designed for DC circuit protection. This specific unit, the TM125DC, is engineered for use within the Compact NSX 160 DC series, providing reliable overcurrent and short-circuit protection for DC power distribution systems. Its robust construction ensures dependable operation in demanding industrial environments.

Technical details

• Series: Compact NSX 160 DC
• Trip Unit Type: TM125DC Thermal Magnetic
• Current Rating: 125 A
• Poles: 4-pole (4P)
• Configuration: 4d (4 normally open auxiliary contacts)
• Voltage Class: DC (specific voltage rating to be confirmed via manufacturer datasheet)
• Interrupting Capacity: To be confirmed via manufacturer datasheet
• Mounting Type: To be confirmed via manufacturer datasheet

Applications & compatibility

This trip unit is commonly employed in DC power distribution panels and control systems for applications requiring precise overcurrent protection. It is suitable for use in industries such as renewable energy systems, battery storage solutions, and DC motor control circuits where reliable and safe operation is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438146 or contact our technical team for cross-reference assistance with compatible Compact NSX DC components.
