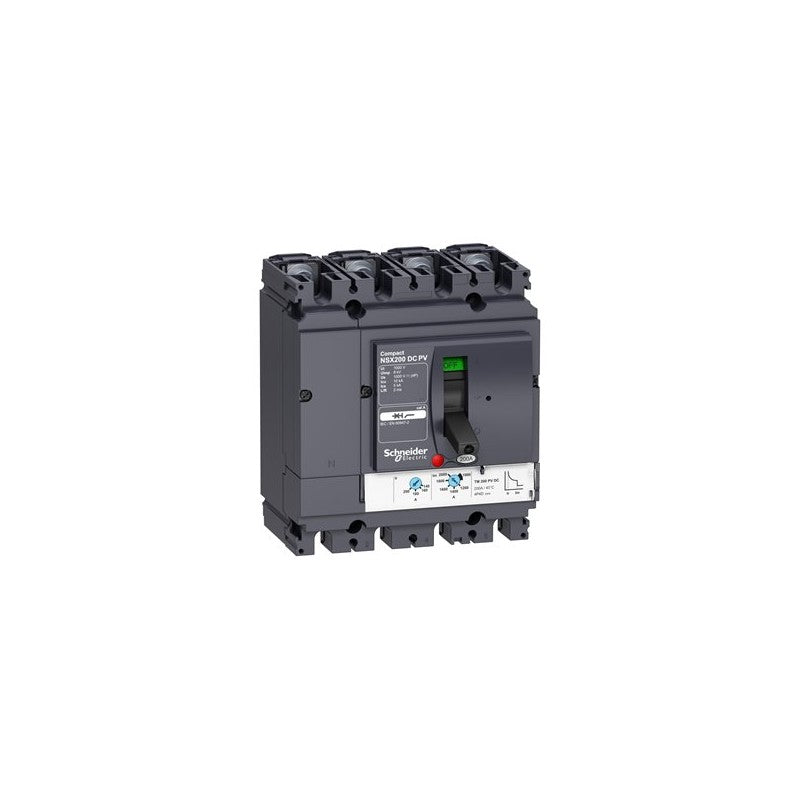

Designed for DC photovoltaic (PV) power systems, the Schneider Electric Compact NSX200 DC PV circuit breaker (LV438201) provides robust overcurrent protection. This 4-pole breaker is rated for 200 Amperes and operates at up to 1000 VDC, making it suitable for demanding solar installations. It incorporates a TM-D trip unit for reliable fault detection.

Technical details

• Series: Compact NSX DC PV
• Configuration: 4-pole
• Rated Current: 200 A
• Maximum DC Voltage: 1000 VDC
• Trip Unit Type: TM-D
• Application: DC photovoltaic systems
• Interrupting Capacity: Verify against manufacturer datasheet for specific rating.
• Terminal Type: Verify against manufacturer datasheet for specific type.

Applications & compatibility

This circuit breaker is specifically engineered for use in DC power distribution within solar energy systems. It is commonly found protecting DC combiners, inverters, and other critical components in utility-scale solar farms, commercial rooftop installations, and off-grid PV arrays. Ensure compatibility with your system's DC voltage and current requirements.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438201 or contact our technical team for cross-reference assistance with compatible Compact NSX DC PV components.
