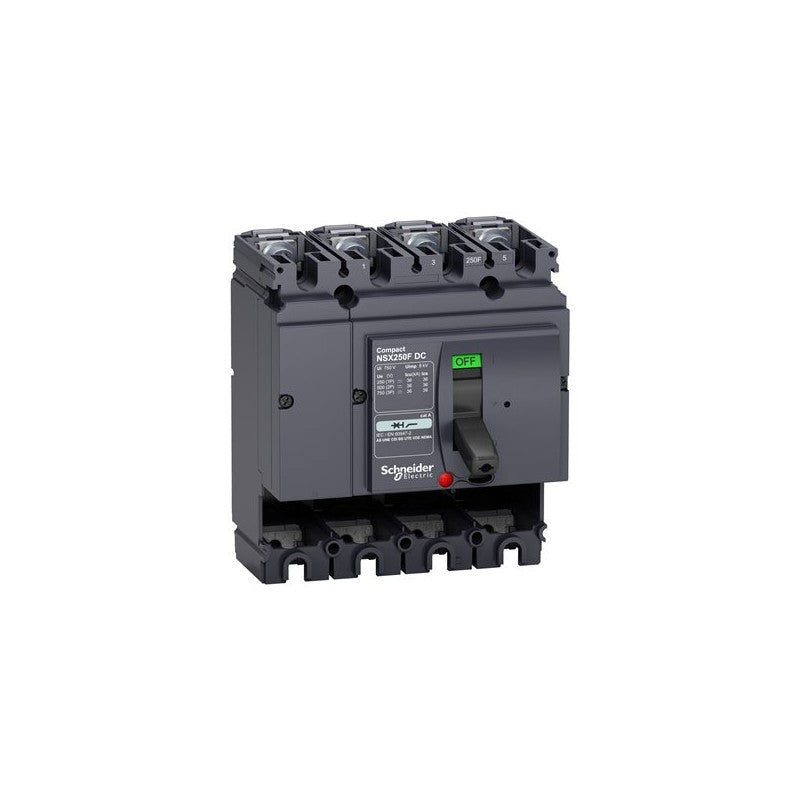

The Schneider Electric Compact NSX250F DC is a 4-pole circuit breaker designed for DC power distribution and protection applications. This fixed-mounted breaker is rated for 250 Amperes and is part of the widely recognized Compact NSX series, known for its robust construction and reliable performance in demanding industrial environments. It serves as a critical component in ensuring the safety and operational continuity of DC electrical systems.

Technical details

• Series: Compact NSX
• Type: DC Circuit Breaker
• Poles: 4
• Amperage Rating: 250 A
• Mounting Type: Fixed
• Trip Unit: Not included (requires separate purchase or integration with a compatible trip unit)
• Voltage Class: DC (specific voltage rating to be confirmed via manufacturer datasheet)
• Interrupting Capacity: To be confirmed via manufacturer datasheet

Applications & compatibility

This circuit breaker is suitable for use in DC power distribution panels, battery charging systems, and DC motor control circuits. Its robust design makes it ideal for applications within industries such as renewable energy (solar power systems), material handling, and industrial manufacturing where reliable DC circuit protection is paramount. Compatibility with specific DC systems and trip units should be verified against the Schneider Electric documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438208 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
