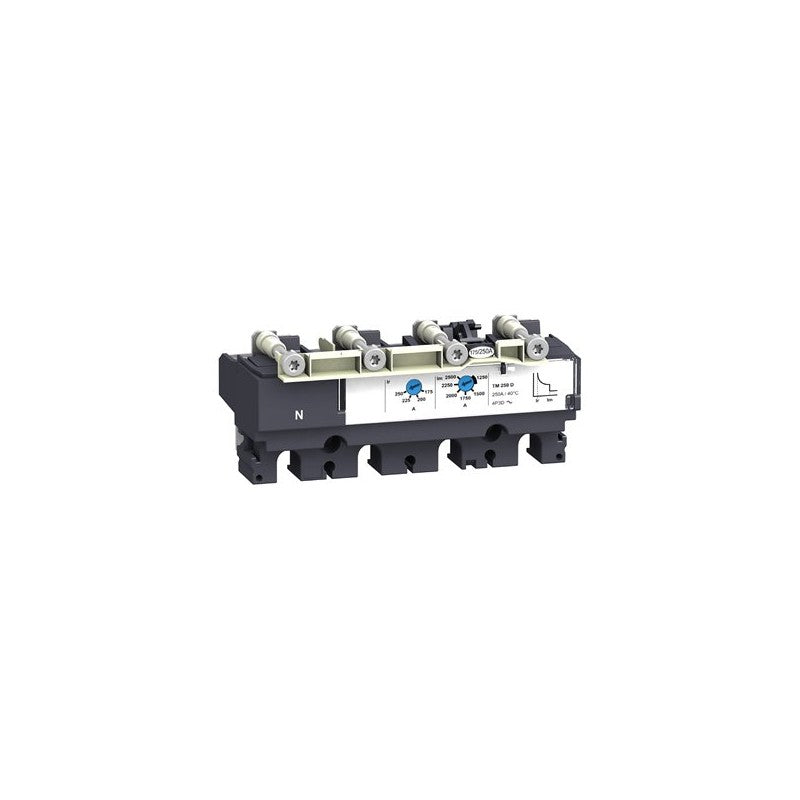

The Schneider Electric Compact NSX 250 DC is a thermal magnetic trip unit designed for DC circuit protection. This specific unit, identified by the part number LV438256, is rated for 200 Amperes and features a 4-pole, 4-disconnect (4d) configuration. It is engineered for reliable operation within DC power distribution systems, offering precise overcurrent and short-circuit protection.

Technical details

• Series: Compact NSX 250 DC
• Trip Unit Type: TM200DC Thermal Magnetic
• Current Rating: 200 A
• Poles: 4
• Disconnects: 4d (4 disconnects)
• Voltage Class: DC (Specific voltage rating to be confirmed via manufacturer datasheet)
• Interrupting Capacity: To be confirmed via manufacturer datasheet
• Terminal Type: To be confirmed via manufacturer datasheet

Applications & compatibility

This trip unit is suitable for use in DC power distribution panels and switchgear, commonly found in industrial settings requiring robust DC circuit protection. Applications include DC motor control circuits, renewable energy systems, and specialized DC power supplies where reliable and accurate tripping is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438256 Schneider Electric trip unit or contact our technical team for cross-reference assistance with compatible Compact NSX components.
