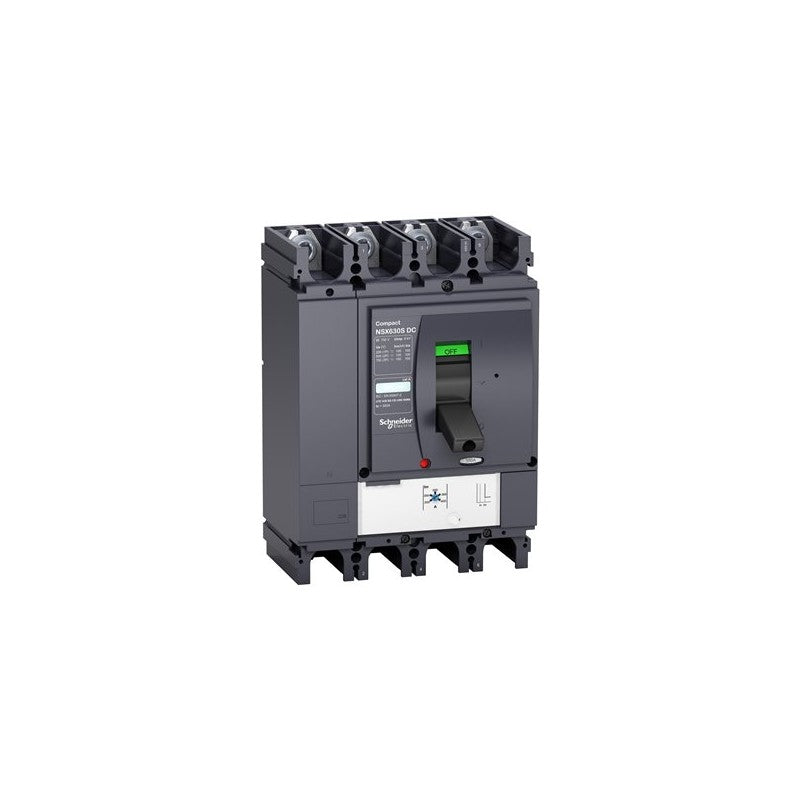

The Schneider Electric Compact NSX500 DC PV circuit breaker is engineered for high-voltage DC photovoltaic applications. This 4-pole breaker is rated for 500 Amperes and 1000 Volts, providing robust protection for solar power systems. Its design incorporates a TM-D trip unit for reliable overcurrent and short-circuit detection.

Technical details

• Series: Compact NSX DC PV
• Type: DC Circuit Breaker
• Current Rating: 500 A
• Voltage Rating: 1000 VDC
• Number of Poles: 4
• Trip Unit: TM-D
• Application: Designed for DC power distribution in photovoltaic installations.
• Interrupting Capacity: For specific interrupting capacity, consult the manufacturer's datasheet.

Applications & compatibility

This Schneider Electric circuit breaker is specifically designed for use in DC power distribution systems within solar farms and large-scale photovoltaic installations. It ensures safe operation and protection for DC combiners, inverters, and other critical components in solar energy generation infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438454 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
