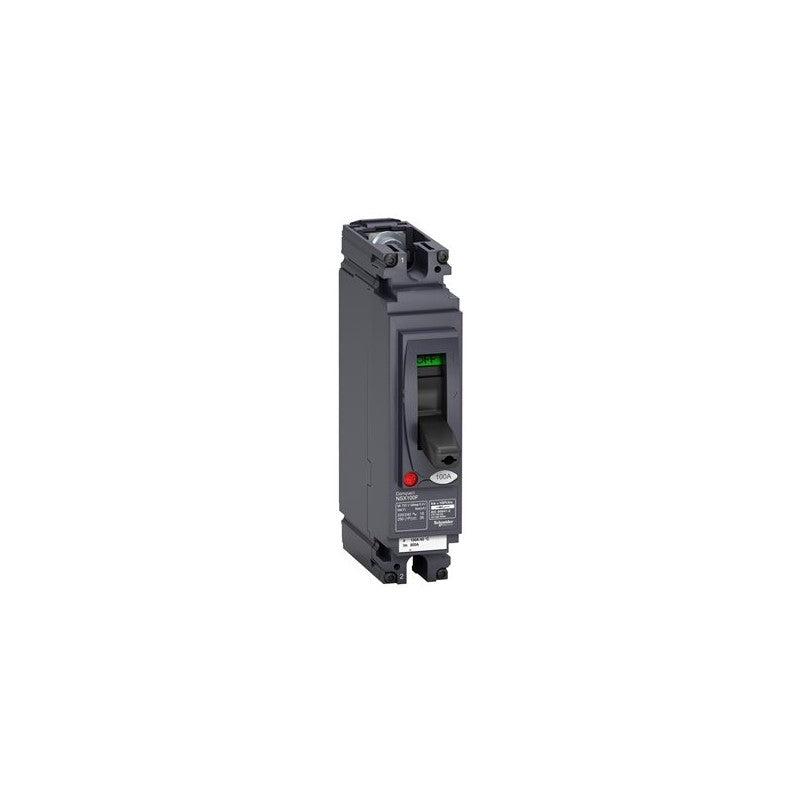

The Schneider Electric Compact NSX100F is a 1-pole circuit breaker designed for AC/DC applications. This unit features a TMD trip unit rated for 16 Amperes and offers a breaking capacity of 18 kA at 240 VAC. It is a component commonly integrated into power distribution systems and motor control circuits within industrial environments.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Configuration: 1 Pole
• Trip Unit Type: TMD
• Trip Unit Rating: 16 A
• AC Breaking Capacity: 18 kA at 240 VAC
• DC Breaking Capacity: Verify against manufacturer datasheet for specific DC voltage ratings.
• Connection Type: Verify against manufacturer datasheet for terminal type and size.

Applications & compatibility

This circuit breaker is suitable for use in various industrial settings, including motor protection, branch circuit protection, and main power distribution panels. It is compatible with systems requiring reliable overcurrent and short-circuit protection for single-phase or DC loads within its specified ratings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438562 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
