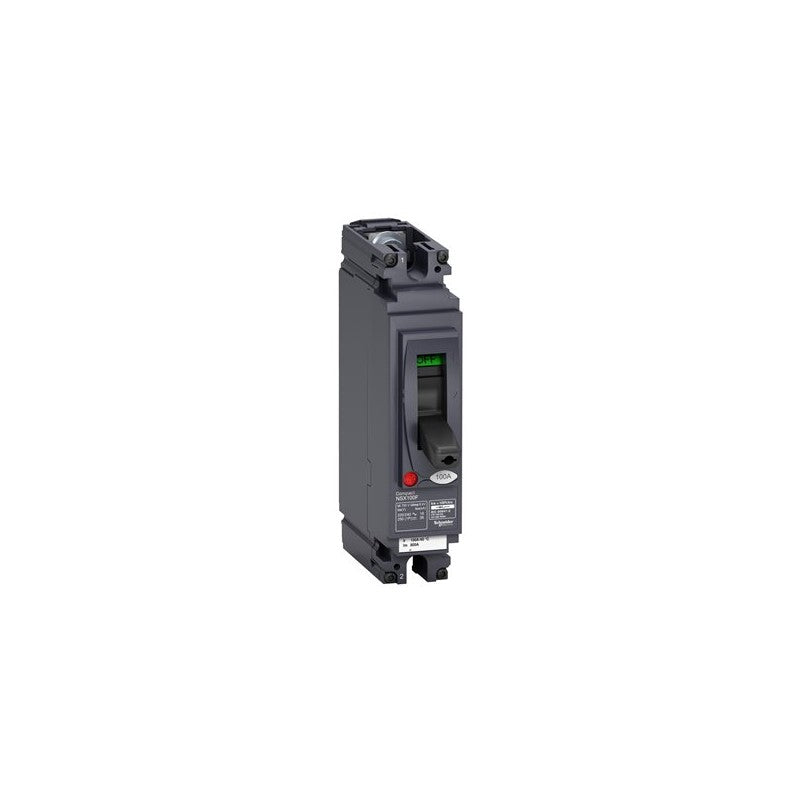

The Schneider Electric Compact NSX100F circuit breaker is designed for AC and DC power distribution and protection applications. This 1-pole unit features a TMD trip unit rated for 20 Amps and offers a breaking capacity of 18 kA at 240 VAC. It is a component within the widely recognized Compact NSX series, known for its robust performance in demanding industrial environments.

Technical details

• Series: Compact NSX
• Model Designation: NSX100F
• Number of Poles: 1
• Trip Unit Type: TMD
• Trip Unit Rating: 20 A
• AC Voltage Rating: Up to 240 VAC
• DC Voltage Rating: Not specified in provided information; verify with manufacturer datasheet.
• Interrupting Capacity: 18 kA at 240 VAC
• Terminal Type: Not specified in provided information; verify with manufacturer datasheet.

Applications & compatibility

This circuit breaker is suitable for use in electrical distribution panels, motor control centers, and power management systems across various industries. It provides essential overcurrent protection for circuits in applications such as manufacturing equipment, material handling systems, and building services.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438563 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
