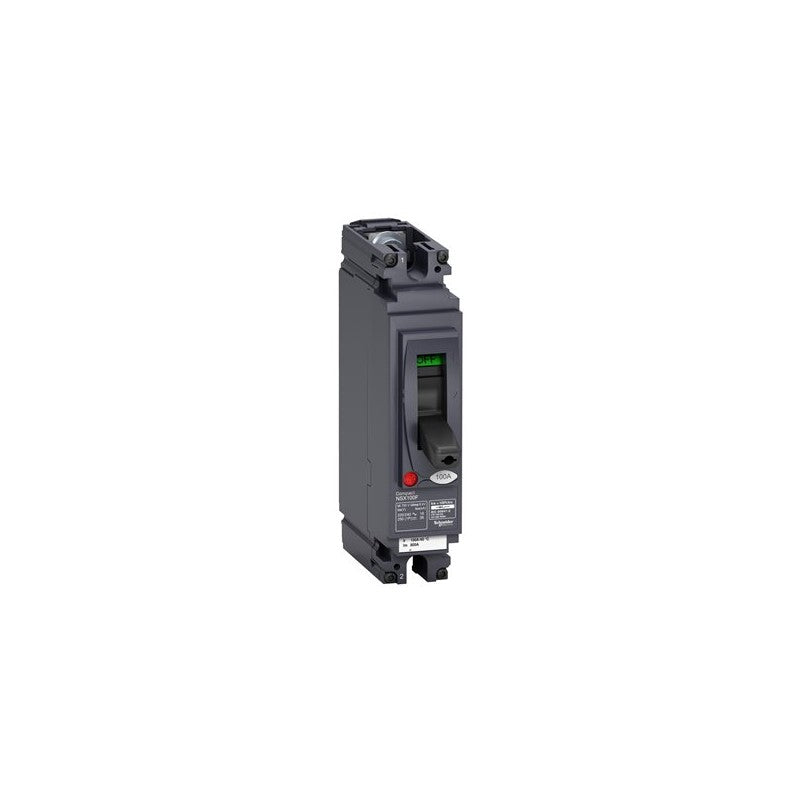

The Schneider Electric Compact NSX100F is a 1-pole circuit breaker designed for AC and DC applications. This unit features a TMD trip unit rated for 25 Amperes and offers a breaking capacity of 18 kA at 240 VAC. It is commonly integrated into power distribution systems and motor control circuits within industrial environments.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Poles: 1
• Trip Unit Type: TMD
• Trip Unit Rating: 25 A
• AC Voltage Rating: Up to 240 VAC
• DC Voltage Rating: Not specified, verify with manufacturer datasheet
• Breaking Capacity: 18 kA at 240 VAC
• Terminal Type: Screw terminals (1d designation indicates specific terminal configuration, verify with datasheet)

Applications & compatibility

This circuit breaker is suitable for use in electrical distribution panels, motor protection circuits, and control systems for machinery such as packaging equipment, conveyor systems, and general industrial automation. It is designed to provide reliable overcurrent protection in demanding operational settings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438564 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
