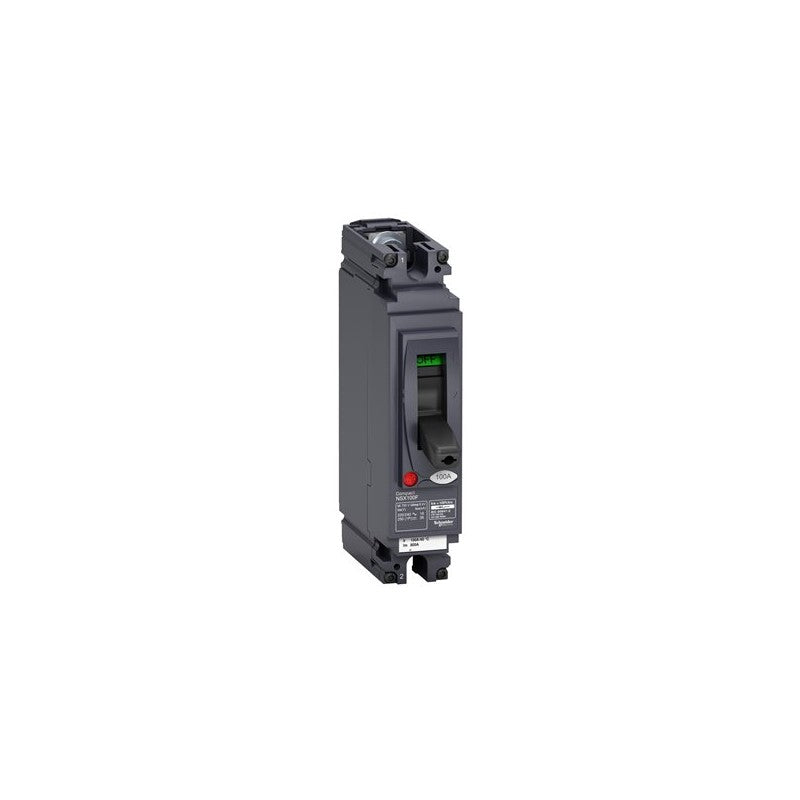

The Schneider Electric Compact NSX100F circuit breaker is designed for robust AC/DC power distribution and protection in demanding industrial environments. This 1-pole unit features a 30A TMD trip unit, providing precise overcurrent and short-circuit protection. It is commonly integrated into control panels and power distribution systems for machinery and equipment.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Poles: 1
• Rated Current: 30 A (TMD trip unit)
• Interrupting Capacity: 18 kA at 240 VAC
• Voltage Compatibility: AC/DC
• Trip Unit Type: TMD
• Form Factor: 1d (refer to manufacturer datasheet for specific dimensions)

Applications & compatibility

This circuit breaker is suitable for use in a wide range of industrial applications including motor control circuits, power distribution panels, and general electrical protection for manufacturing equipment. It is compatible with systems requiring reliable and precise circuit interruption for both alternating and direct current loads.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438565 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
