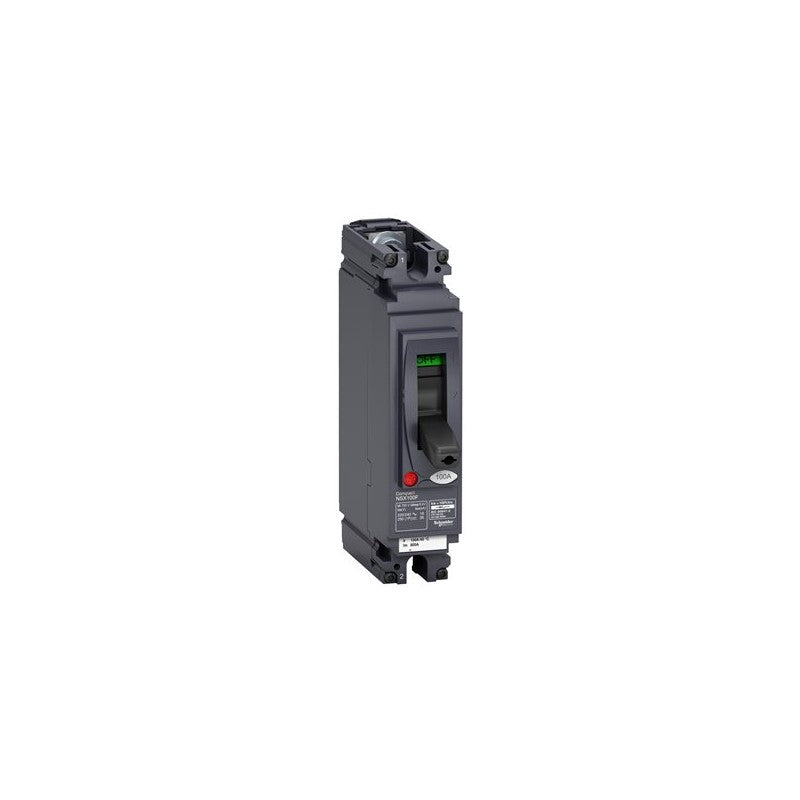

The Schneider Electric Compact NSX100F circuit breaker is designed for AC/DC applications, offering a 1-pole configuration with a 40A TMD trip unit. This breaker is part of the NSX series, known for its robust performance in demanding industrial environments. It provides essential overcurrent protection for electrical systems.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Configuration: 1 Pole
• Trip Unit Type: TMD
• Current Rating: 40 A
• Interrupting Capacity: 18 kA at 240 VAC
• Voltage Compatibility: AC/DC
• Terminal Type: 1d (refer to manufacturer datasheet for specific terminal configuration)

Applications & compatibility

This circuit breaker is suitable for use in a variety of industrial settings, including motor control centers, power distribution panels, and machinery requiring reliable overcurrent protection. It is commonly found in applications such as conveyor systems, pump controls, and general industrial power distribution where a 1-pole, 40A breaker is specified.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438566 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
