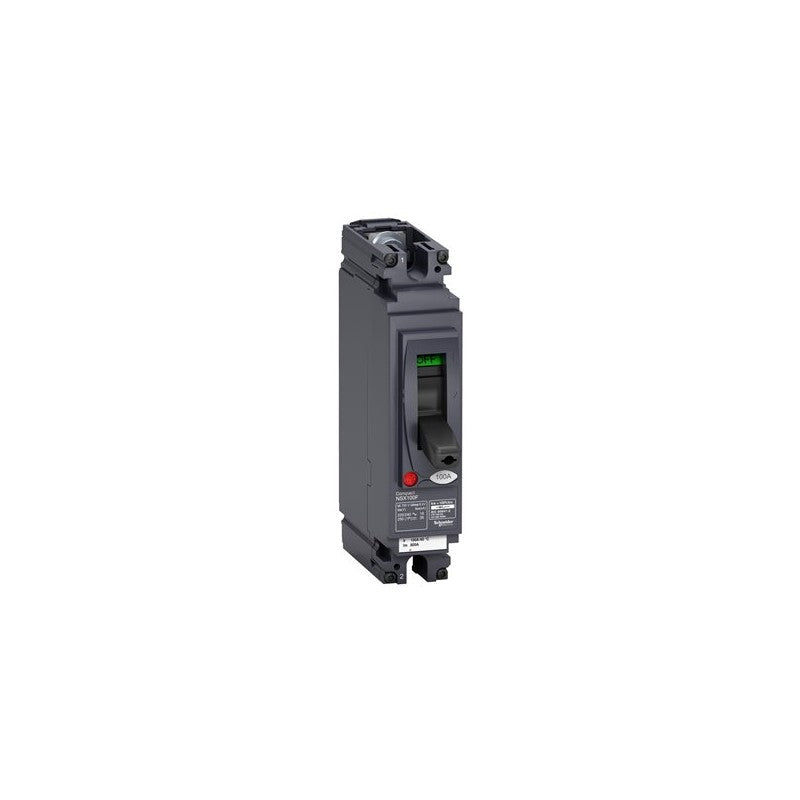

The Schneider Electric Compact NSX100F is a 1-pole circuit breaker designed for AC and DC applications. This model, part of the NSX series, features a 50 Amp TMD trip unit and a breaking capacity of 18 kA at 240 VAC. It is suitable for use in electrical distribution systems requiring reliable overcurrent protection.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Number of Poles: 1
• Trip Unit Type: TMD
• Current Rating: 50 A
• Breaking Capacity: 18 kA at 240 VAC
• Voltage Compatibility: AC/DC
• Form Factor: 1d (refer to manufacturer datasheet for detailed dimensions and mounting specifications)

Applications & compatibility

This circuit breaker is commonly employed in industrial control panels, motor protection circuits, and power distribution systems. Its robust design makes it suitable for environments found in manufacturing plants, material handling equipment, and process control applications where reliable circuit interruption is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438567 or contact our technical team for cross-reference assistance with compatible NSX series components.
