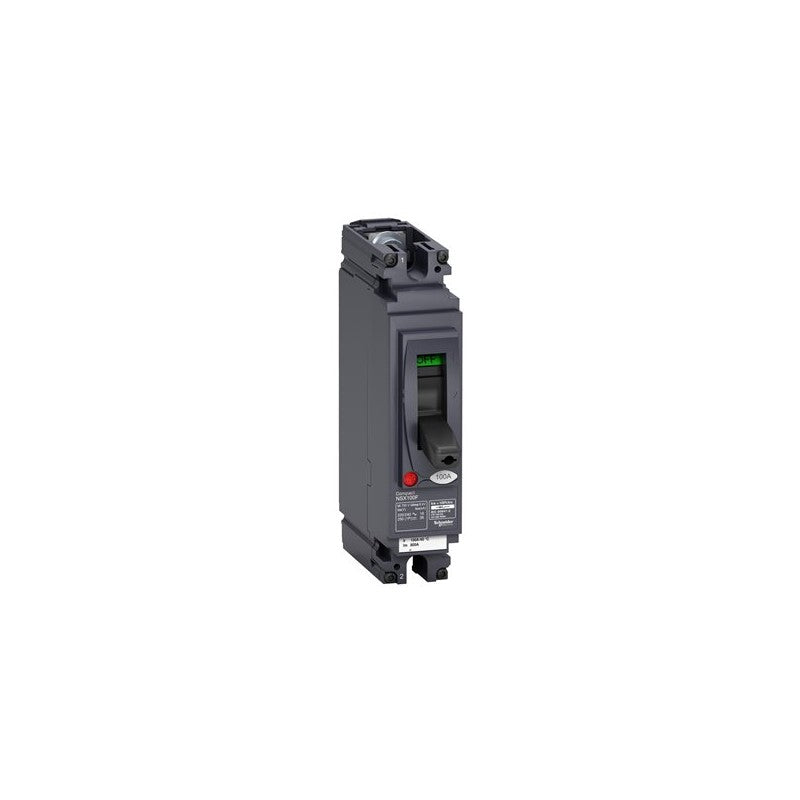

The Schneider Electric Compact NSX100F is a 1-pole circuit breaker designed for AC and DC applications. This unit features a 63A TMD trip unit and offers a breaking capacity of 18 kA at 240 VAC. It is commonly integrated into power distribution systems and motor control circuits within industrial facilities.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Poles: 1
• AC/DC Compatibility: Yes
• Rated Current (Trip Unit): 63 A
• Breaking Capacity: 18 kA at 240 VAC
• Trip Unit Type: TMD
• Form Factor: 1d (refer to manufacturer datasheet for detailed dimensions and mounting specifications)

Applications & compatibility

This circuit breaker is suitable for use in electrical distribution panels, motor protection circuits, and control systems for machinery such as packaging equipment, material handling systems, and manufacturing automation lines. Its AC/DC capability makes it versatile for various industrial power configurations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438568 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
