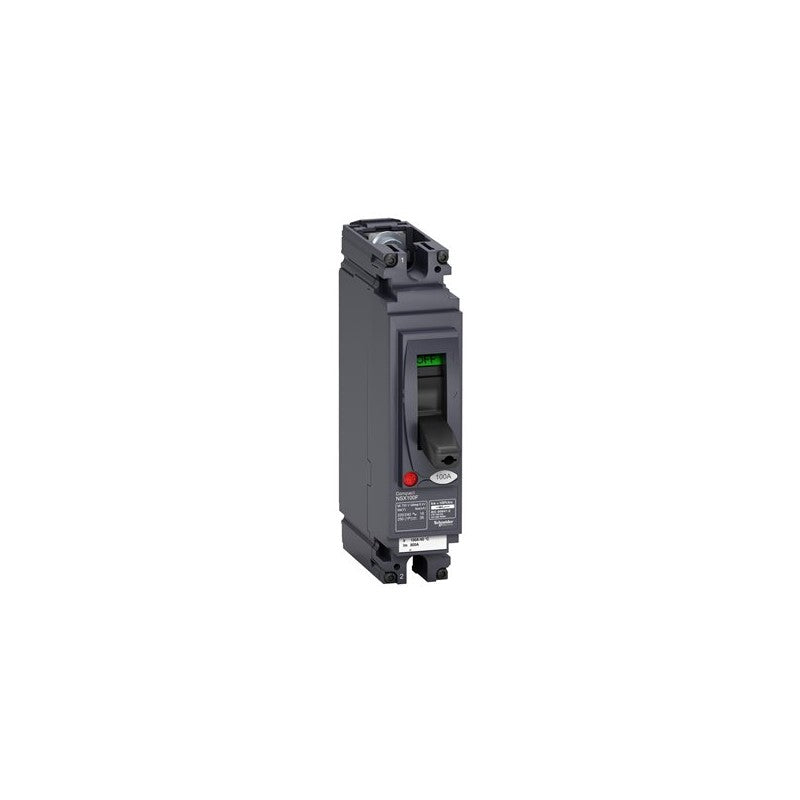

Schneider Electric's Compact NSX100F circuit breaker is engineered for robust AC and DC power distribution systems. This 1-pole unit, identified by the part number LV438570, is part of the Compact NSX series, known for its reliable protection capabilities in demanding industrial environments. It is designed to provide essential circuit protection for machinery and electrical infrastructure.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Poles: 1
• Interrupting Capacity: 18 kA at 240 VAC
• Trip Unit Type: TMD
• Current Rating: 100 A
• Voltage Compatibility: AC/DC
• Form Factor: 1d (refer to manufacturer datasheet for precise dimensions and mounting details)

Applications & compatibility

This circuit breaker is suitable for use in a variety of industrial applications including motor control circuits, power distribution panels, and protection for electrical equipment in manufacturing facilities. Its AC/DC capability makes it versatile for mixed-system environments. Compatibility with other components within the Schneider Electric Compact NSX range should be verified against specific system requirements.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438570 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
