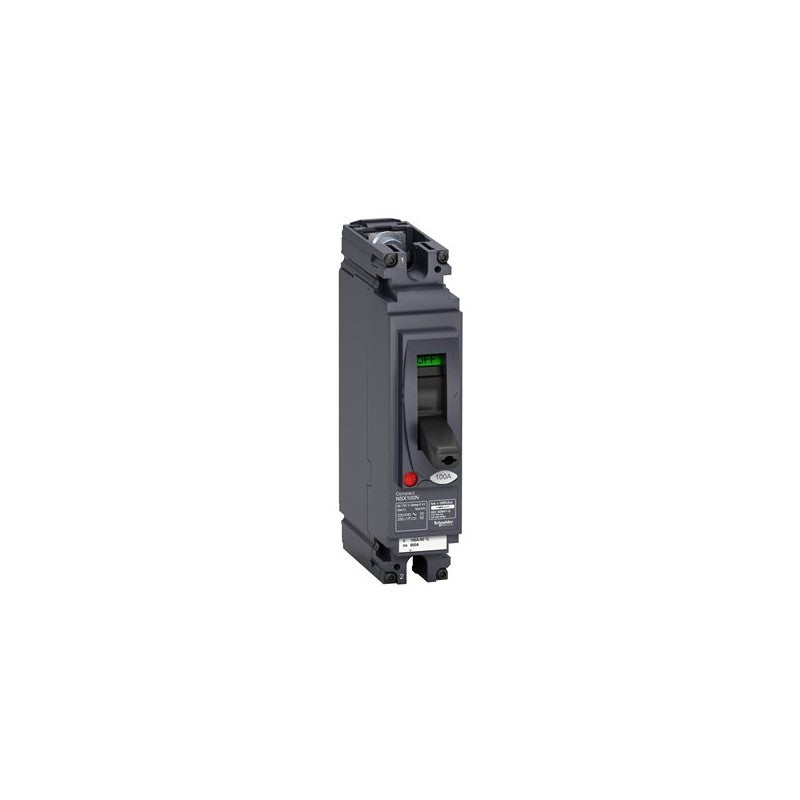

The Schneider Electric Compact NSX100N is a 1-pole circuit breaker designed for AC/DC applications. This unit features a TMD trip unit rated for 16 Amperes and offers a breaking capacity of 25 kA at 240 VAC. It is a component commonly integrated into power distribution systems and motor control circuits within industrial facilities.

Technical details

• Series: Compact NSX
• Model Designation: NSX100N
• Number of Poles: 1
• Trip Unit Type: TMD
• Trip Unit Rating: 16 A
• AC Breaking Capacity: 25 kA at 240 VAC
• DC Compatibility: Yes
• Terminal Type: Screw terminals (verify specific configuration against manufacturer datasheet)

Applications & compatibility

This circuit breaker is suitable for use in various industrial environments, including motor protection circuits, main distribution panels, and control cabinets. It is designed to protect electrical circuits from overloads and short circuits in applications such as conveyor systems, pump controls, and HVAC units.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438572 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
