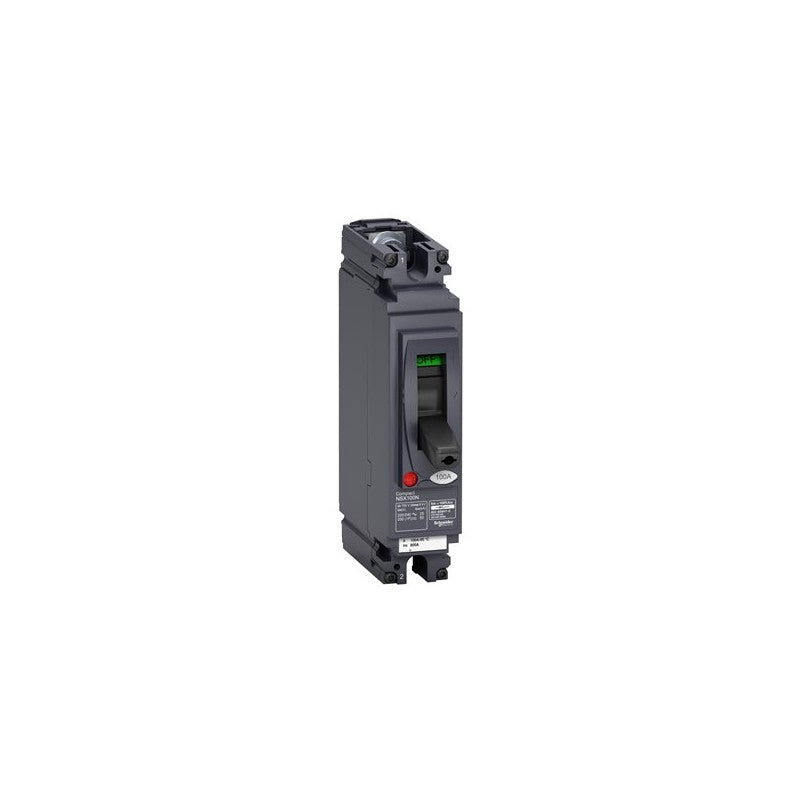

The Schneider Electric Compact NSX100N is a 1-pole molded case circuit breaker designed for AC and DC applications. This unit features a TMD trip unit rated for 25 Amperes and offers a 25 kA interrupting capacity at 240 VAC. It is a component commonly integrated into power distribution systems and motor control circuits within industrial facilities.

Technical details

• Series: Compact NSX
• Model: NSX100N
• Configuration: 1 Pole
• Trip Unit Type: TMD
• Current Rating: 25 A
• Interrupting Capacity: 25 kA at 240 VAC
• Voltage Compatibility: AC/DC
• Terminal Type: Screw terminals (verify against datasheet for specific configuration)

Applications & compatibility

This circuit breaker is suitable for use in electrical panels and control cabinets for protecting circuits in machinery such as conveyor systems, packaging equipment, and pump controls. Its AC/DC capability makes it versatile for various industrial power distribution needs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438574 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
