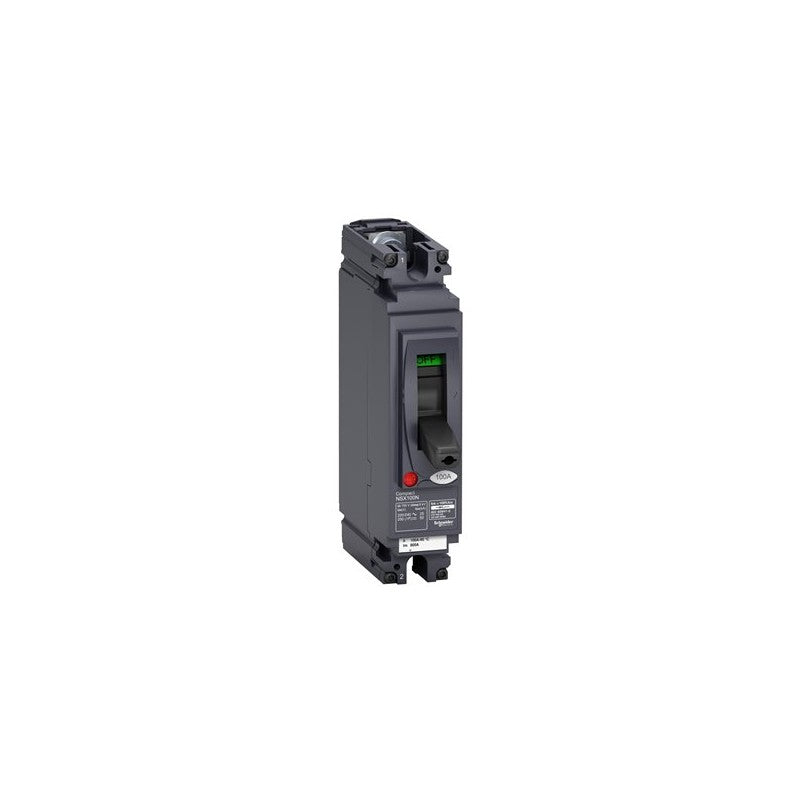

The Schneider Electric Compact NSX100N is a 1-pole circuit breaker designed for AC and DC applications. This unit is part of the Compact NSX series, a line of molded case circuit breakers known for their robust construction and reliable performance in demanding industrial environments. It offers a significant interrupting capacity, making it suitable for protecting electrical circuits against overcurrents and short circuits in various machinery and control panels.

Technical details

• Series: Compact NSX
• Model Designation: NSX100N
• Pole Configuration: 1 Pole
• Interrupting Capacity: 25 kA at 240 VAC
• Trip Unit Type: TMD (Thermal Magnetic Drawout)
• Current Rating: 30 A
• Voltage Compatibility: Suitable for AC and DC systems; specific voltage ratings beyond 240 VAC for AC should be verified against the manufacturer's datasheet.
• Terminal Type: Screw terminals (1d designation typically refers to a specific terminal configuration, consult datasheet for details).

Applications & compatibility

This circuit breaker is commonly employed in motor control centers, power distribution panels, and machine tool applications where precise overcurrent protection is essential. Its AC/DC capability allows for versatile use across different types of electrical systems found in manufacturing plants, automation equipment, and renewable energy installations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV438575 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
