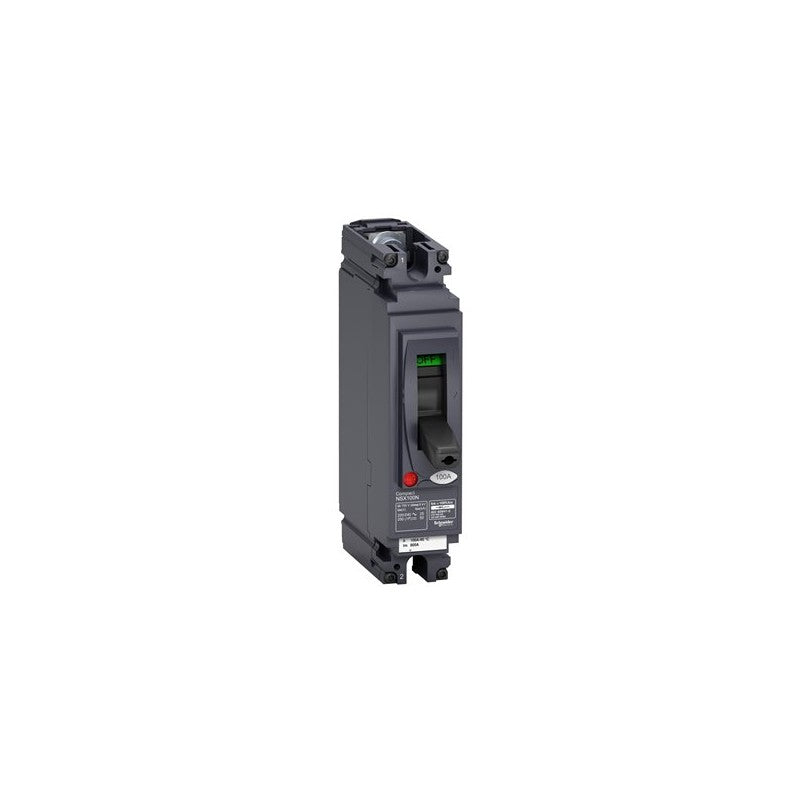

Schneider Electric's Compact NSX100N circuit breaker is engineered for robust AC and DC electrical distribution systems. This 1-pole unit, part of the NSX series, provides essential overcurrent protection for demanding industrial environments. It is designed to safeguard equipment and personnel from fault conditions in applications requiring precise current control.

Technical details

• Series: Compact NSX
• Model Designation: NSX100N
• Pole Configuration: 1 Pole
• Interrupting Capacity: 25 kA at 240 VAC
• Trip Unit Type: TMD
• Current Rating: 40 A
• AC/DC Compatibility: Suitable for both AC and DC circuits
• Terminal Type: Screw terminals (verify specific configuration against manufacturer datasheet)

Applications & compatibility

This circuit breaker is commonly deployed in control panels, power distribution units, and machinery requiring reliable circuit protection. Its versatility makes it suitable for applications in manufacturing plants, material handling systems, and renewable energy installations where AC and DC power sources are utilized.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438576 or contact our technical team for cross-reference assistance with compatible NSX series components.
