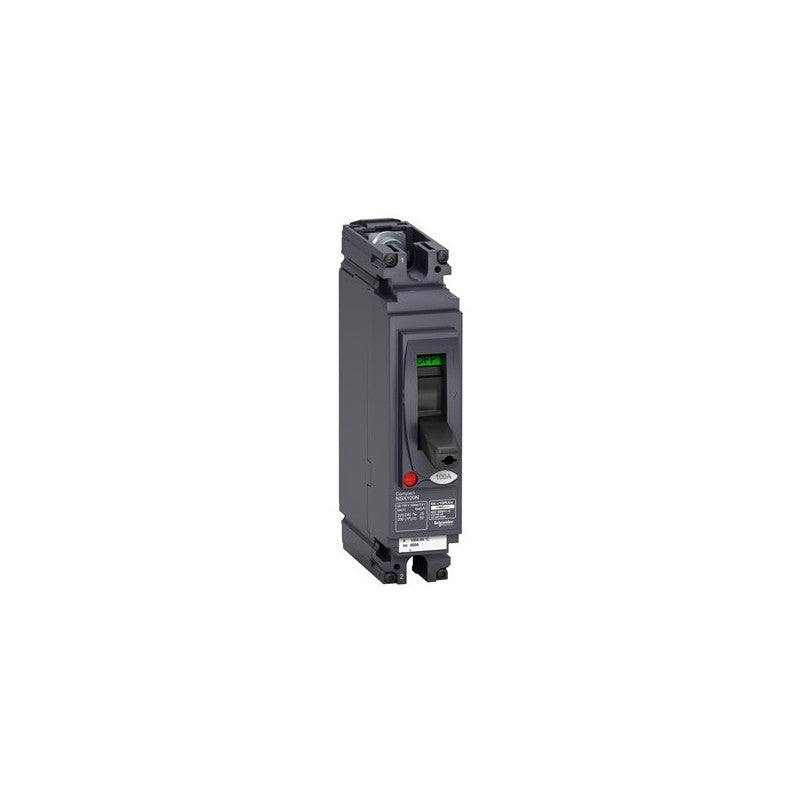

The Schneider Electric Compact NSX100N is a versatile circuit breaker designed for AC and DC applications, commonly integrated into power distribution systems for machinery and control panels. This specific unit features a 1-pole configuration and is rated for 50 Amperes with a breaking capacity of 25 kA at 240 VAC, ensuring robust protection against overcurrents and short circuits.

Technical details

• Series: Compact NSX
• Model Designation: NSX100N
• Configuration: 1 Pole (1d)
• Rated Current: 50 A
• AC Voltage Rating: 240 VAC
• AC Breaking Capacity: 25 kA at 240 VAC
• Trip Unit Type: TMD (Thermal Magnetic Differential)
• DC Application Compatibility: Yes

Applications & compatibility

This circuit breaker is suitable for use in a wide range of industrial environments, including motor control centers, power distribution boards, and as a protective device for individual machinery. Its AC/DC capability makes it adaptable for various power systems found in manufacturing plants, automation systems, and renewable energy installations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438577 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
