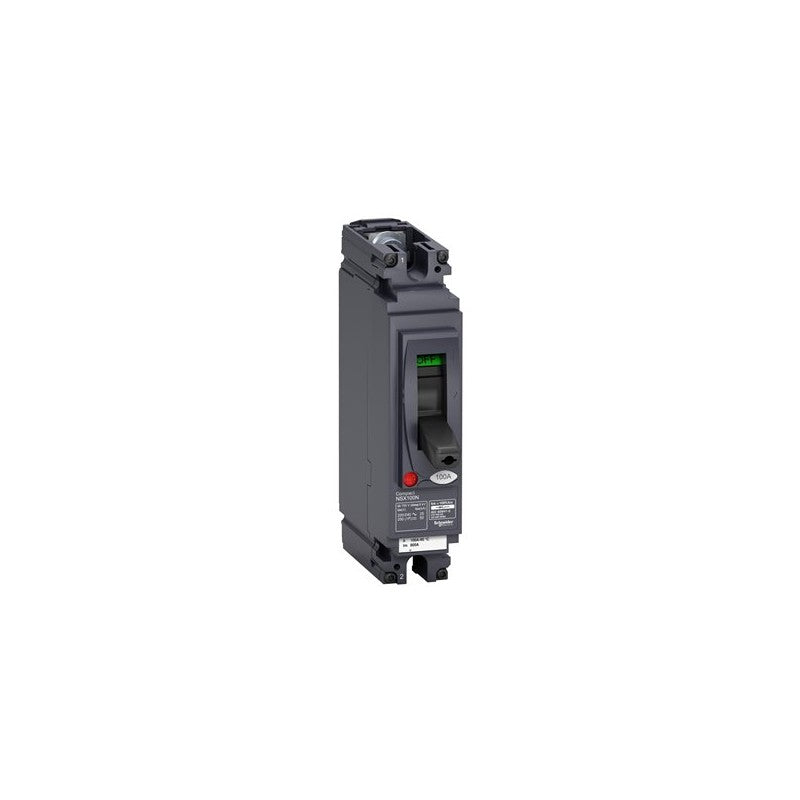

The Schneider Electric Compact NSX100N circuit breaker is designed for robust AC and DC power distribution and protection applications. This 1-pole unit, identified by the part number LV438579, is part of the Compact NSX series, known for its reliable performance in demanding industrial environments. It offers a significant interrupting capacity, making it suitable for systems requiring high fault current handling.

Technical details

• Series: Compact NSX
• Type: Molded Case Circuit Breaker
• Poles: 1
• Rated Current: 80 A (TMD trip unit)
• Interrupting Capacity: 25 kA at 240 VAC
• Voltage Compatibility: AC/DC
• Trip Unit Type: TMD
• Configuration: 1d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is commonly employed in power distribution panels, motor control centers, and electrical systems within manufacturing facilities. Its AC/DC capability and high interrupting rating make it suitable for protecting circuits in applications such as industrial machinery, automation equipment, and renewable energy installations where reliable fault protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438579 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
