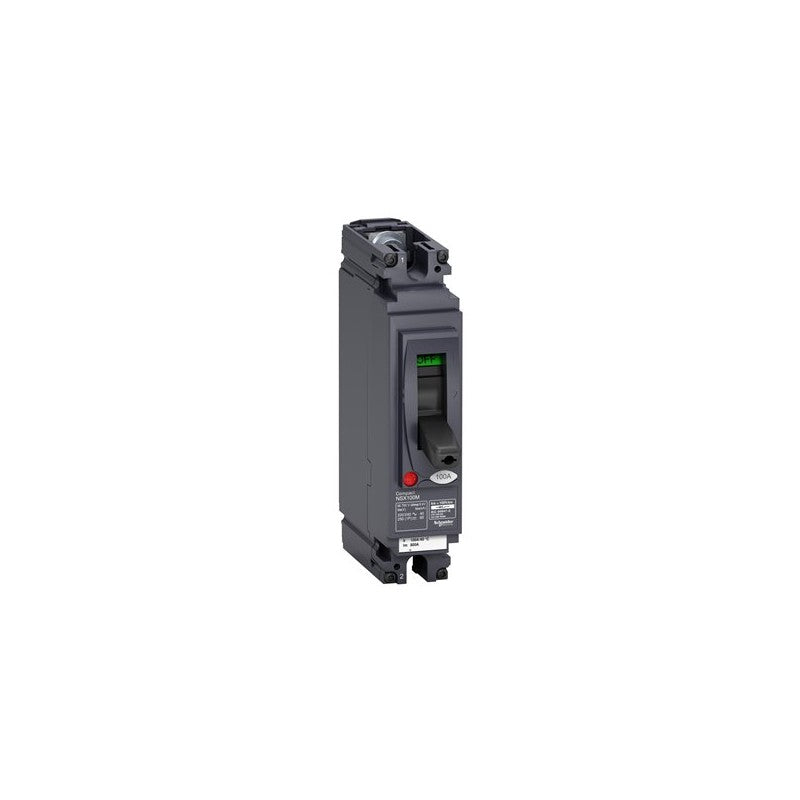

The Schneider Electric Compact NSX100M is a molded case circuit breaker designed for AC and DC applications, offering robust protection for electrical systems. This 1-pole unit features a 40 kA interrupting rating at 240 VAC, ensuring safety in fault conditions. Its integrated TMD trip unit provides reliable overcurrent protection with a 20 A setting.

Technical details

• Series: Compact NSX
• Model: NSX100M
• Poles: 1
• AC Voltage Rating: 240 VAC
• DC Voltage Rating: Not specified in provided information; verify with manufacturer datasheet.
• Interrupting Capacity: 40 kA at 240 VAC
• Trip Unit Type: TMD
• Trip Unit Rating: 20 A
• Terminal Type: 1d (refer to manufacturer documentation for specific terminal configuration)

Applications & compatibility

This circuit breaker is suitable for use in a variety of industrial environments, including motor control circuits, distribution panels, and power supply protection. It is commonly found in machinery such as packaging equipment, material handling systems, and general industrial automation setups where reliable circuit protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438583 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
