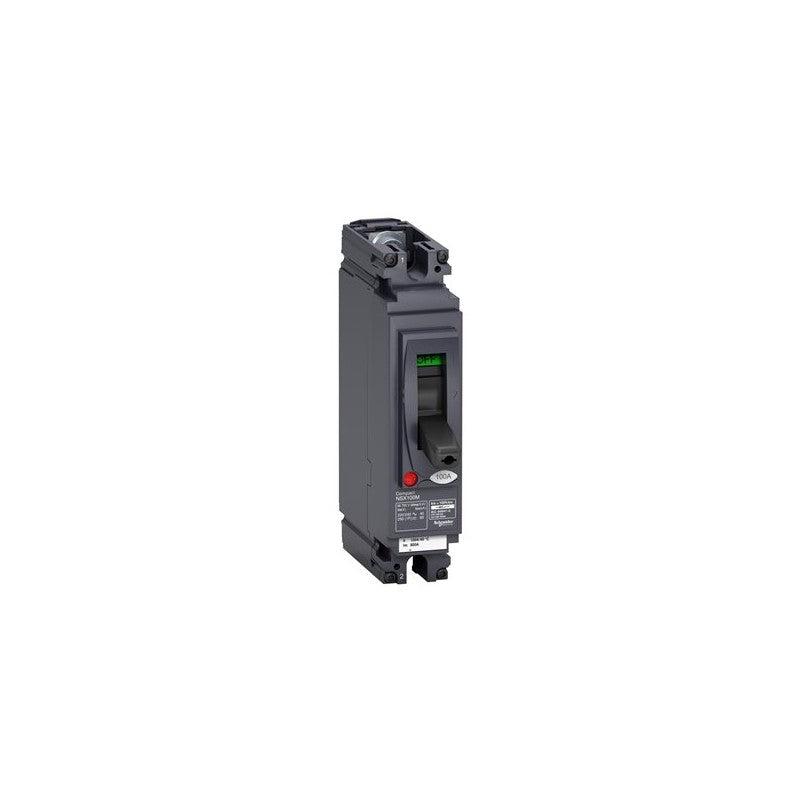

The Schneider Electric Compact NSX100M circuit breaker is designed for robust AC and DC power distribution and protection applications. As part of the Compact NSX series, this 1-pole unit offers a high interrupting capacity, making it suitable for demanding industrial environments where reliable fault protection is critical. Its construction supports integration into various control panels and electrical distribution systems.

Technical details

• Series: Compact NSX
• Model: NSX100M
• Poles: 1
• Interrupting Capacity: 40 kA at 240 VAC
• Trip Unit Type: TMD
• Current Rating: 25 A
• Voltage Compatibility: AC/DC
• Terminal Type: Screw terminals (1d designation implies specific terminal configuration, refer to datasheet for full details)

Applications & compatibility

This circuit breaker is commonly employed in motor control centers, power distribution boards, and machine tool applications requiring precise overcurrent and short-circuit protection. Its AC/DC capability allows for versatile use across different types of electrical systems found in manufacturing plants, process control facilities, and renewable energy installations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438584 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
