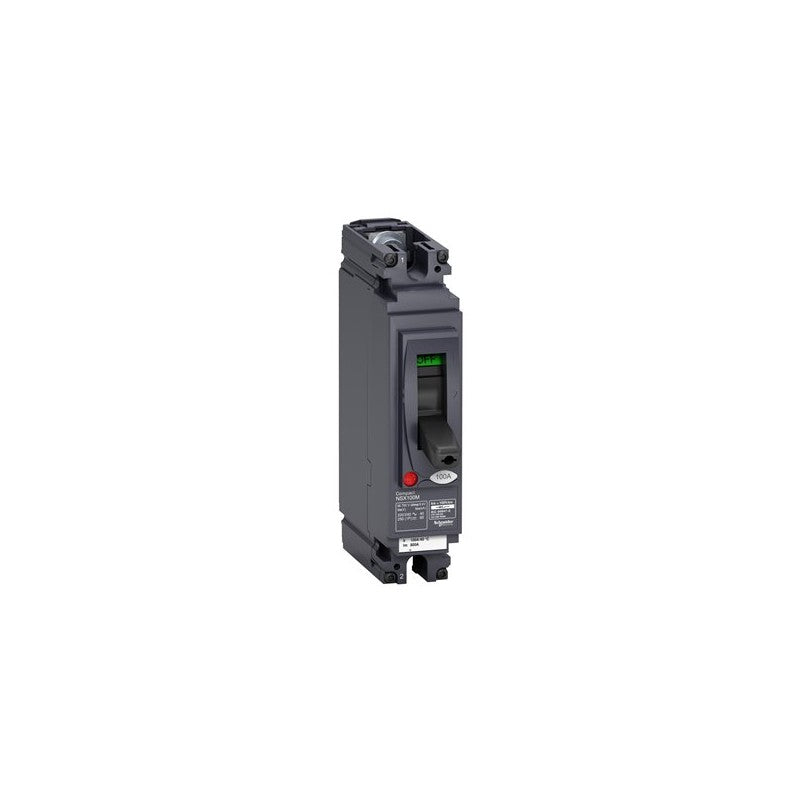

The Schneider Electric ComPact NSX100M circuit breaker is designed for AC and DC power distribution and protection applications. This 1-pole unit features a 30A thermal magnetic trip unit, providing reliable overcurrent protection for electrical systems. It is rated for 40 kA interrupting capacity at 240 VAC, ensuring safety in fault conditions.

Technical details

• Series: ComPact NSX
• Model Designation: NSX100M
• Number of Poles: 1
• Trip Unit Type: Thermal Magnetic (TMD)
• Trip Unit Rating: 30 A
• Interrupting Capacity: 40 kA at 240 VAC
• Voltage Compatibility: AC/DC
• Terminal Type: Screw terminals (verify specific configuration against manufacturer datasheet)

Applications & compatibility

This circuit breaker is suitable for use in various industrial environments, including motor control centers, power distribution panels, and machinery control systems. It is commonly found in applications requiring robust protection for single-phase circuits or DC power supplies, such as on packaging lines, conveyor systems, and process control equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438585 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
