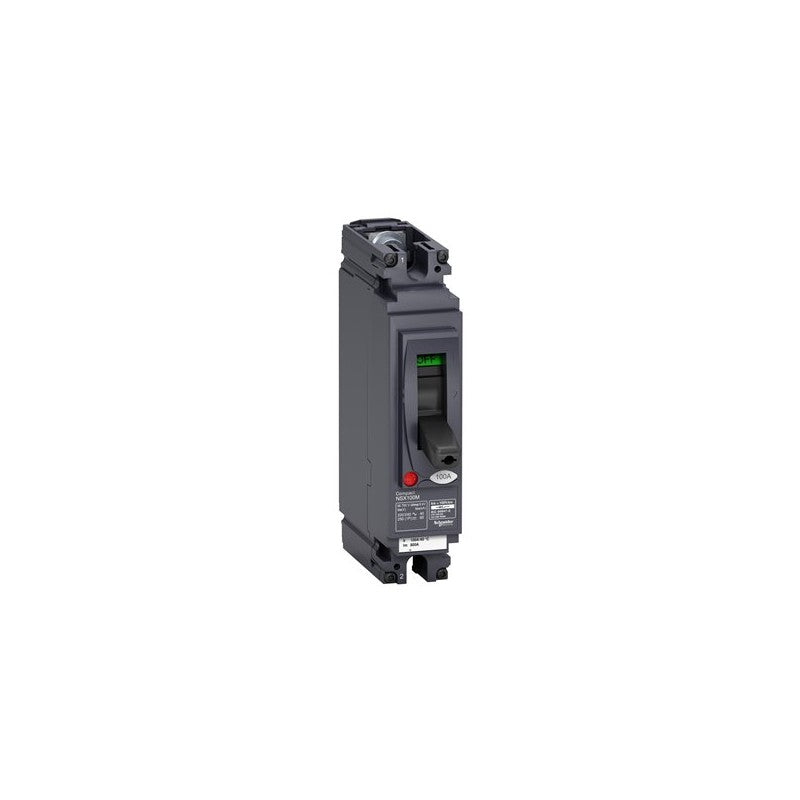

The Schneider Electric ComPact NSX100M circuit breaker is engineered for robust AC/DC power distribution and protection in demanding industrial environments. This 1-pole unit is part of the ComPact NSX series, known for its reliable performance in applications requiring high interrupting capacity. It is designed to safeguard electrical circuits against overcurrents and short circuits.

Technical details

• Series: ComPact NSX
• Model Designation: NSX100M
• Pole Configuration: 1 Pole
• Interrupting Capacity: 40 kA at 240 VAC
• Trip Unit Type: TMD
• Current Rating: 40 A
• Voltage Compatibility: AC/DC
• Terminal Type: 1d (refer to manufacturer datasheet for specific terminal configuration details)

Applications & compatibility

This circuit breaker is suitable for use in a wide range of industrial automation systems, including motor control centers, power distribution panels, and machinery requiring precise overcurrent protection. Its AC/DC capability makes it versatile for various applications such as renewable energy systems, battery storage, and general industrial power distribution.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438586 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
