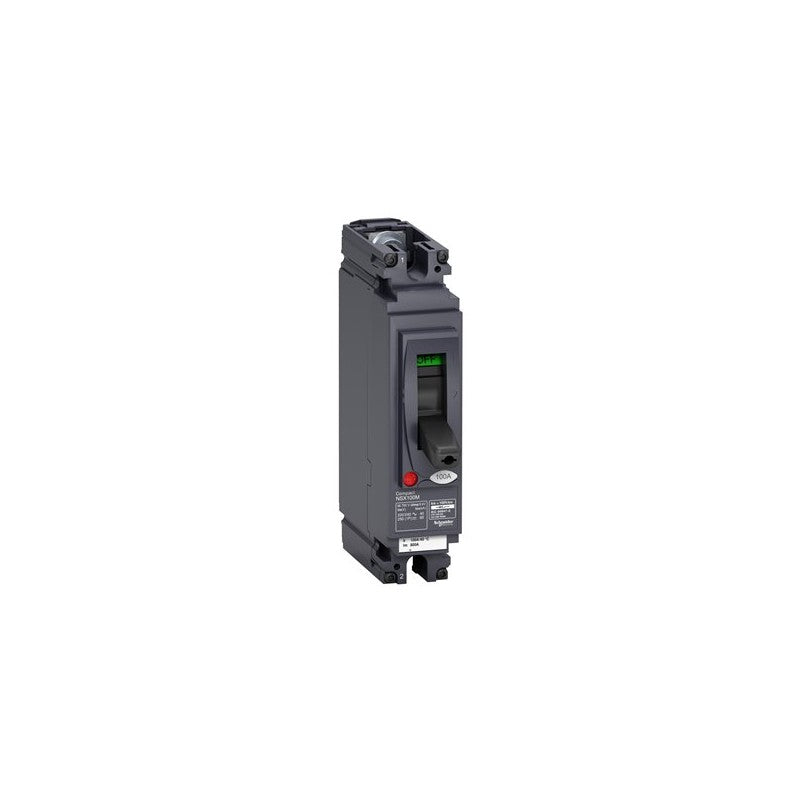

Schneider Electric's Compact NSX100M circuit breaker is engineered for robust AC and DC power distribution and protection. This 1-pole unit is designed for applications requiring high interrupting capacity, such as in control panels, motor circuits, and power distribution systems within manufacturing facilities.

Technical details

• Series: Compact NSX
• Model: NSX100M
• Pole Configuration: 1-pole
• Interrupting Capacity: 40 kA at 240 VAC
• Trip Unit Type: TMD
• Trip Unit Rating: 63 A
• Voltage Compatibility: AC/DC
• Terminal Type: 1d (refer to manufacturer datasheet for specific terminal configuration)
• Enclosure Type: Compact

Applications & compatibility

This circuit breaker is suitable for use in industrial control panels, motor starter assemblies, and power distribution boards. It is commonly found in applications such as conveyor systems, packaging machinery, and general industrial power distribution where reliable circuit protection is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438588 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
