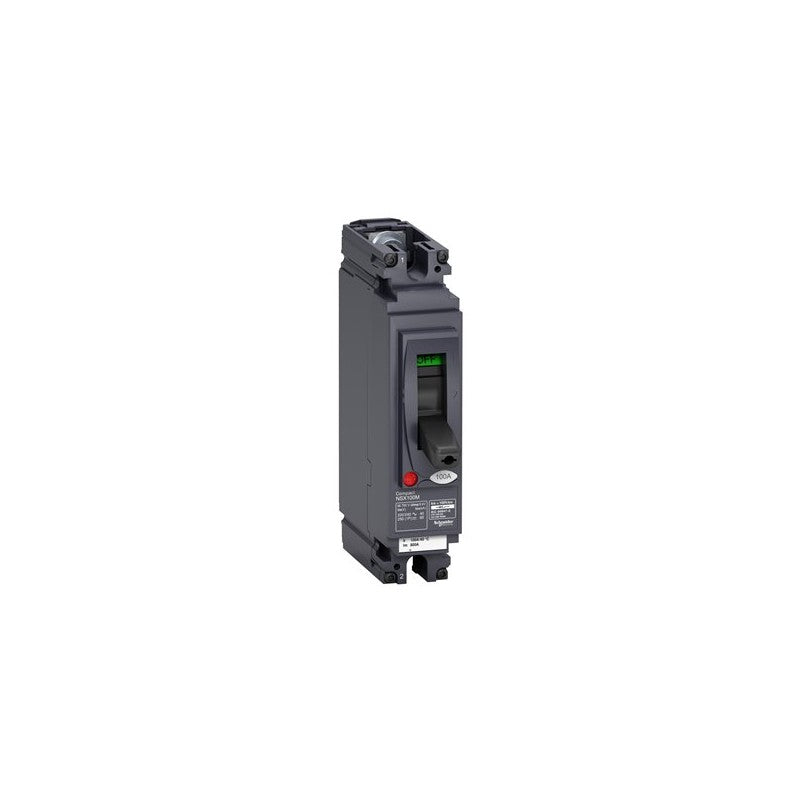

The Schneider Electric Compact NSX100M circuit breaker is designed for robust AC and DC power distribution and protection applications. As part of the Compact NSX series, this 1-pole unit offers a significant interrupting capacity, making it suitable for demanding industrial environments where reliable fault protection is critical.

Technical details

• Series: Compact NSX
• Model: NSX100M
• Poles: 1
• Interrupting Capacity: 40 kA at 240 VAC
• Trip Unit Type: TMD
• Current Rating: 100 A
• Voltage Compatibility: AC/DC
• Configuration: 1d (likely refers to a specific internal configuration or accessory slot, verify with manufacturer datasheet)

Applications & compatibility

This circuit breaker is commonly employed in control panels, motor control centers, and power distribution systems for machinery such as packaging equipment, material handling systems, and general industrial automation. Its AC/DC capability and high interrupting rating ensure reliable protection in diverse electrical configurations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438590 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
