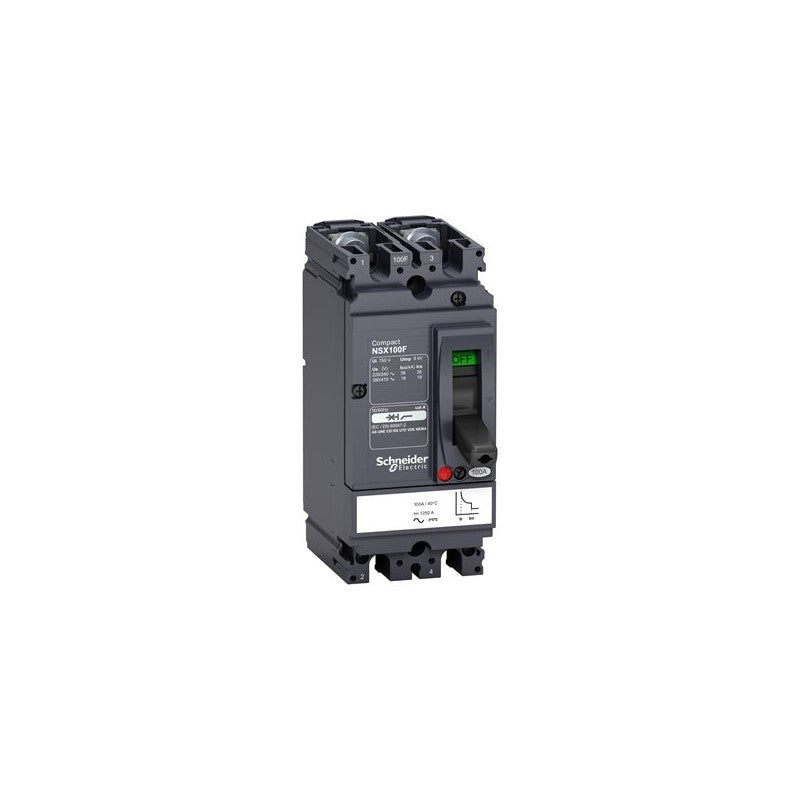

The Schneider Electric Compact NSX100F is a molded case circuit breaker designed for AC and DC applications. This specific unit features a 2-pole configuration and is rated for 18 kA interrupting capacity at 415 VAC. It incorporates a TMD trip unit with a 20 A rating, making it suitable for protecting electrical circuits in demanding industrial environments.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Configuration: 2-pole (2d)
• Interrupting Capacity: 18 kA at 415 VAC
• Trip Unit Type: TMD
• Current Rating: 20 A
• Voltage Compatibility: AC/DC
• Enclosure Type: Molded Case

Applications & compatibility

This circuit breaker is commonly employed in power distribution systems for machinery and equipment within manufacturing facilities. Its robust design and specific ratings make it suitable for protecting circuits in applications such as motor control centers, panelboards, and power distribution units found in packaging lines, material handling systems, and general industrial machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438593 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
