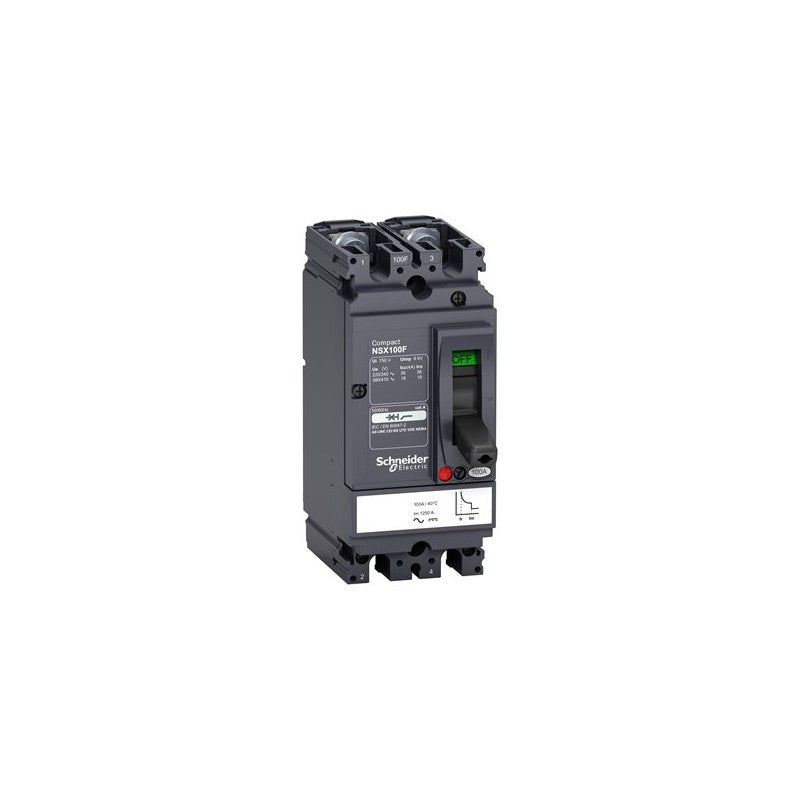

The Schneider Electric Compact NSX100F is a versatile circuit breaker designed for AC and DC applications. This model, part of the NSX series, offers a robust 18 kA interrupting capacity at 415 VAC, ensuring reliable protection in demanding industrial environments. It features a TMD trip unit with a 40 A rating and a 2-pole configuration, making it suitable for a range of power distribution and motor protection circuits.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Configuration: 2-pole
• Interrupting Capacity: 18 kA at 415 VAC
• Trip Unit Type: TMD
• Current Rating: 40 A
• Voltage Compatibility: AC/DC
• Terminal Type: 2d (refer to manufacturer datasheet for specific terminal configuration details)

Applications & compatibility

This circuit breaker is commonly employed in electrical distribution panels, motor control centers, and power supply systems across various industries. Its robust design and specific ratings make it suitable for protecting circuits in manufacturing plants, automation systems, and infrastructure projects where reliable overcurrent protection is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438596 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
