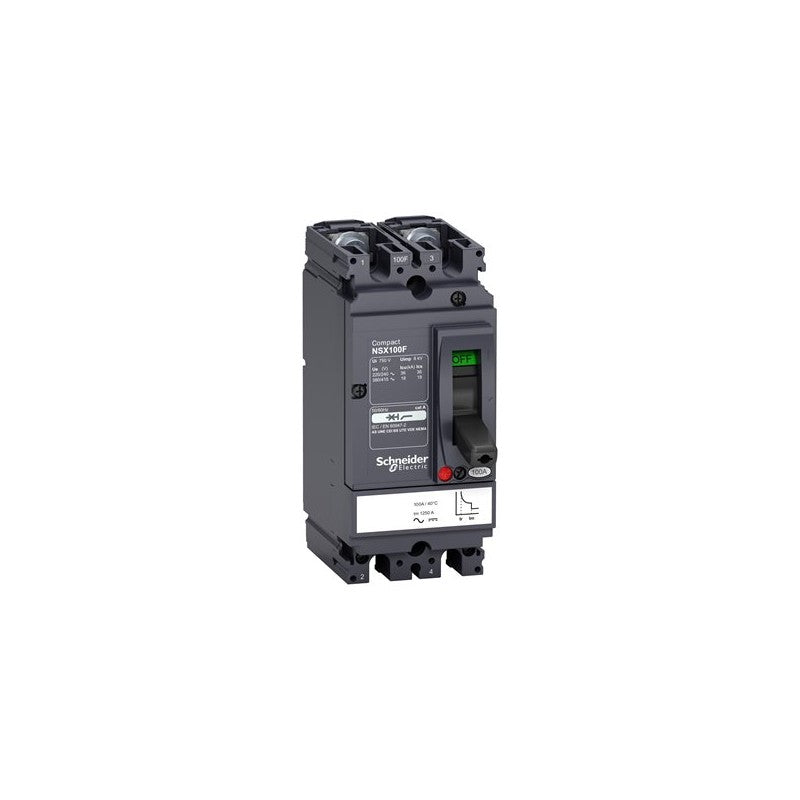

The Schneider Electric Compact NSX100F is a versatile circuit breaker designed for AC and DC applications, commonly found in power distribution panels and motor control circuits. This specific unit features a TMD trip unit rated for 63 Amperes and operates with a 2-pole configuration, providing essential protection for electrical systems. Its robust construction ensures reliable performance in demanding industrial environments.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Breaking Capacity: 18 kA at 415 VAC
• Trip Unit Type: TMD
• Trip Unit Rating: 63 A
• Number of Poles: 2
• Configuration: 2d (refer to manufacturer datasheet for specific meaning of '2d')
• Voltage Compatibility: AC/DC

Applications & compatibility

This Schneider Electric circuit breaker is suitable for use in a wide range of industrial settings, including manufacturing plants, automation systems, and power distribution networks. It is designed to protect electrical circuits in machinery such as conveyor systems, packaging equipment, and process control units, ensuring operational continuity and safety.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438598 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
