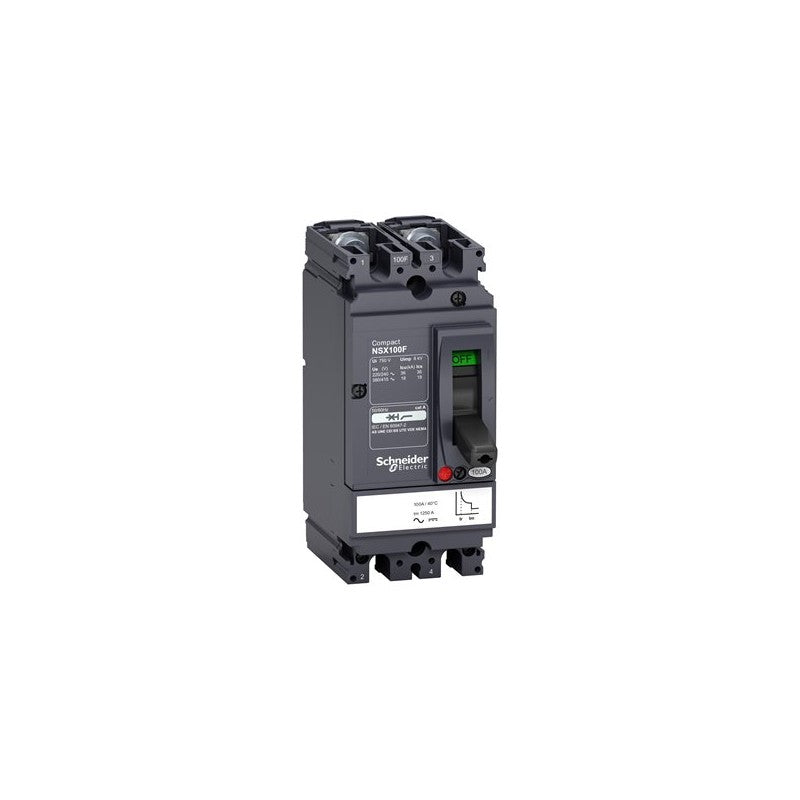

The Schneider Electric Compact NSX100F is a versatile circuit breaker designed for AC and DC applications, offering robust protection in demanding industrial environments. This specific unit, part of the Compact NSX series, features a TMD trip unit rated for 80 Amperes and a breaking capacity of 18 kA at 415 VAC, making it suitable for protecting electrical circuits against overloads and short circuits in medium-power distribution systems.

Technical details

• Series: Compact NSX
• Model: NSX100F
• Type: AC/DC Circuit Breaker
• Trip Unit: TMD
• Current Rating: 80 A
• Number of Poles: 2
• Breaking Capacity: 18 kA at 415 VAC
• Configuration: 2d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is commonly employed in motor control centers, power distribution panels, and as a protective device for machinery in sectors such as manufacturing, food and beverage processing, and water treatment. Its AC/DC capability allows for flexible integration into various electrical system architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438599 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
