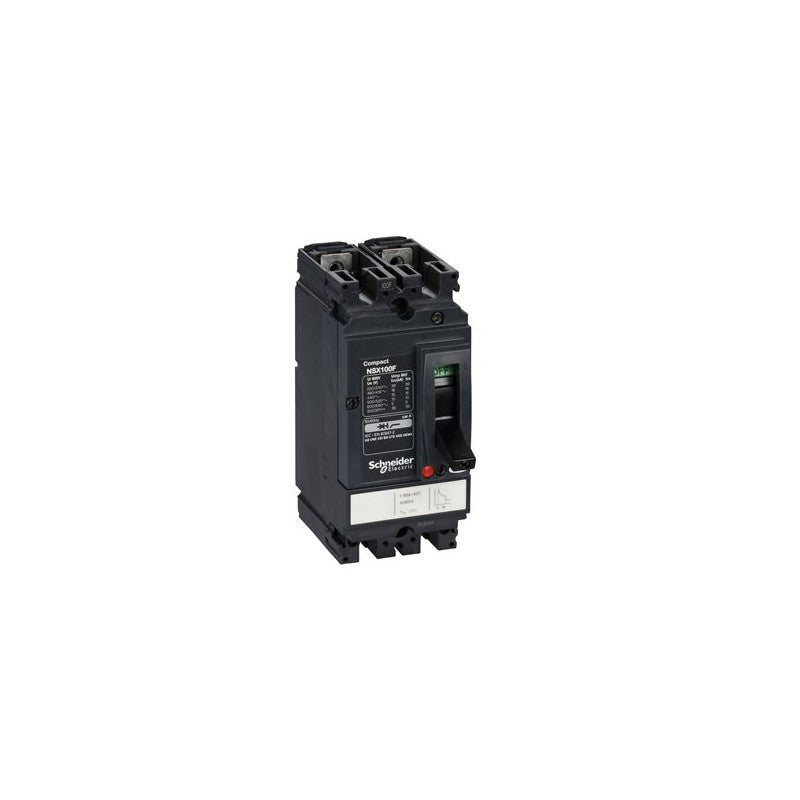

The Schneider Electric ComPact NSX100F is a versatile AC/DC circuit breaker designed for robust electrical protection in demanding industrial environments. This 2-pole unit, part of the ComPact NSX series, offers a breaking capacity of 18 kA at 415 VAC, ensuring reliable performance under fault conditions. It features a TMD trip unit with a 100 A rating, providing precise overcurrent and short-circuit protection.

Technical details

• Series: ComPact NSX
• Model: NSX100F
• Type: AC/DC Circuit Breaker
• Poles: 2
• Breaking Capacity: 18 kA at 415 VAC
• Trip Unit Type: TMD
• Current Rating: 100 A
• Configuration: 2d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is commonly employed in power distribution systems, motor control circuits, and general electrical protection applications across various industries. It is suitable for use in control panels, machinery, and building electrical infrastructure where reliable overcurrent protection is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV438600 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
