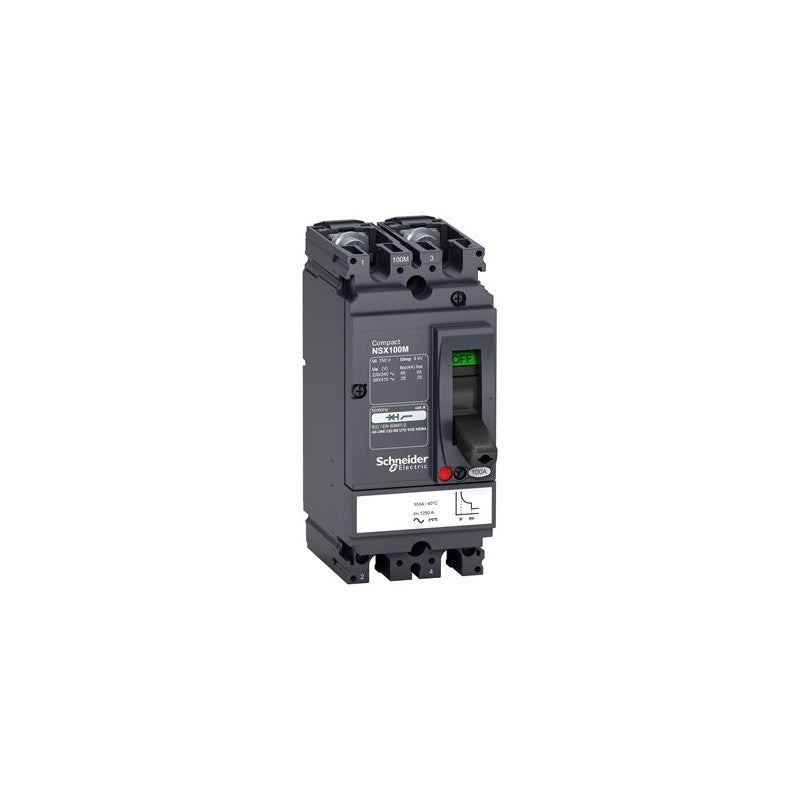

The Schneider Electric Compact NSX100M is a versatile AC/DC circuit breaker designed for robust electrical protection in demanding industrial environments. This specific unit, part of the Compact NSX series, offers a significant breaking capacity of 25 kA at 415 VAC, ensuring reliable performance under fault conditions. It features a TMD trip unit with a 20 A rating and a 2-pole configuration, suitable for applications requiring precise current monitoring and isolation.

Technical details

• Series: Compact NSX
• Model: NSX100M
• Configuration: 2-pole
• AC/DC Compatibility: Suitable for both AC and DC circuits
• Breaking Capacity: 25 kA at 415 VAC
• Trip Unit Type: TMD
• Current Rating: 20 A
• Voltage Rating: Designed for systems up to 415 VAC. For DC voltage ratings, please consult the manufacturer's datasheet.

Applications & compatibility

This circuit breaker is commonly employed in power distribution systems, motor control circuits, and protection applications within manufacturing facilities, data centers, and renewable energy installations. Its robust design and high breaking capacity make it suitable for protecting equipment in sectors such as food and beverage processing, automotive manufacturing, and water treatment plants.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438603 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
