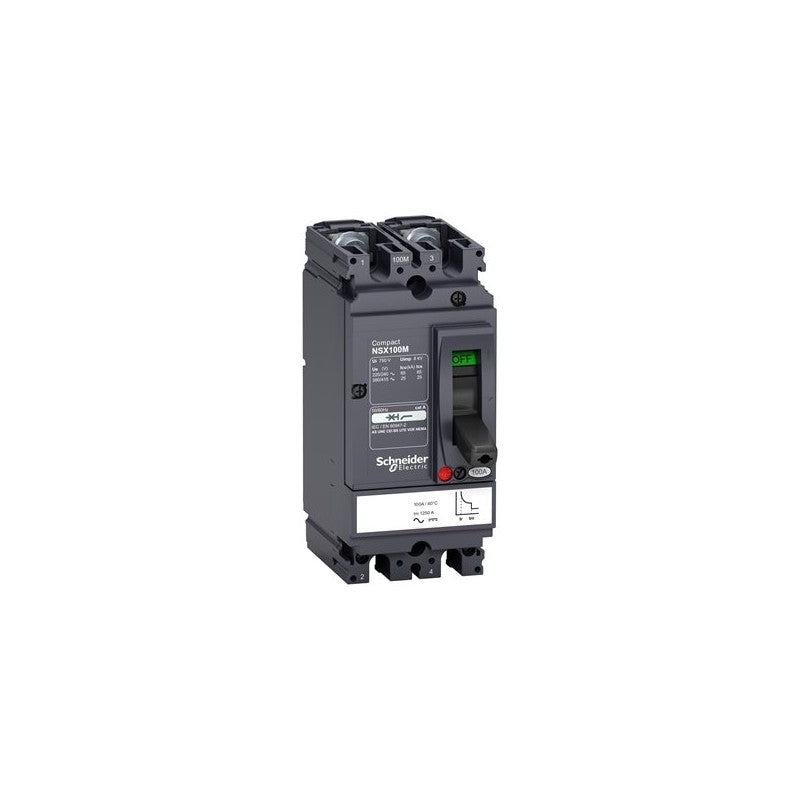

The Schneider Electric Compact NSX100M is a high-performance molded case circuit breaker designed for AC and DC applications. This 2-pole breaker is part of the Compact NSX series, known for its robust construction and reliable protection capabilities in demanding industrial environments. It offers a significant breaking capacity, making it suitable for systems requiring robust fault current interruption.

Technical details

• Series: Compact NSX
• Model Designation: NSX100M
• Configuration: 2-pole
• Rated Current: 80 A
• Breaking Capacity: 25 kA at 415 VAC
• Trip Unit Type: TMD (Thermal Magnetic Differential)
• Voltage Compatibility: AC/DC
• Terminal Type: 2d (refer to manufacturer datasheet for specific terminal configuration details)

Applications & compatibility

This circuit breaker is commonly deployed in power distribution systems for manufacturing facilities, process control applications, and machinery protection. Its versatility in handling both AC and DC circuits makes it a valuable component for a wide range of industrial equipment, including motor control centers, power panels, and renewable energy installations. Ensure compatibility with your specific system voltage and fault current requirements by consulting the manufacturer's datasheet.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438609 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
