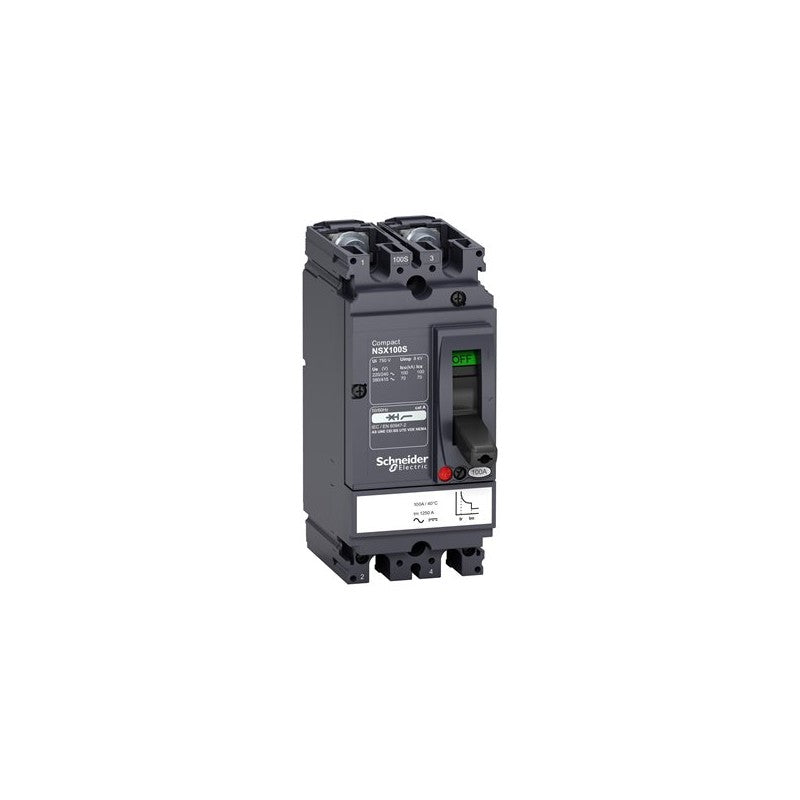

The Schneider Electric Compact NSX100S is a versatile circuit breaker designed for AC and DC applications, commonly found in power distribution panels and motor control circuits. This specific unit is rated for 70 kA interrupting capacity at 415 VAC, ensuring robust protection against short circuits. It features a TMD trip unit with a 50 A current rating and a 2-pole configuration, providing reliable overcurrent and short-circuit protection for electrical systems.

Technical details

• Series: Compact NSX
• Model Designation: NSX100S
• Interrupting Capacity: 70 kA at 415 VAC
• Trip Unit Type: TMD
• Current Rating: 50 A
• Number of Poles: 2
• Voltage Compatibility: AC/DC
• Configuration: 2 poles 2d (indicating specific internal pole arrangement and functionality)

Applications & compatibility

This Schneider Electric circuit breaker is suitable for use in various industrial environments, including manufacturing facilities, data centers, and commercial buildings. It is commonly integrated into electrical distribution systems, motor control centers, and as a protective device for downstream equipment such as pumps, fans, and conveyors. Its AC/DC capability makes it adaptable to a range of power supply configurations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438617 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
