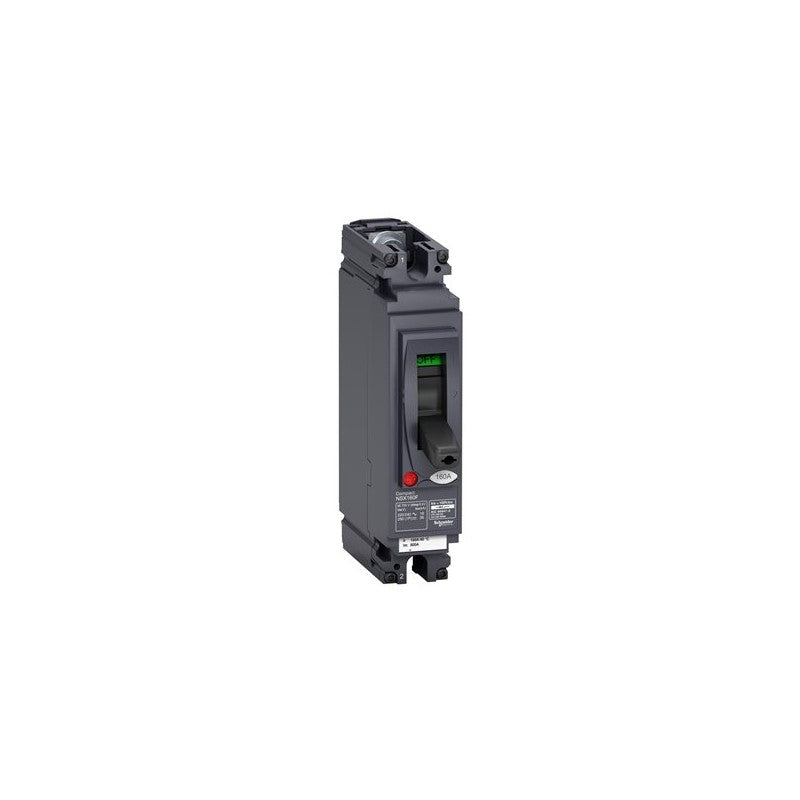

The Schneider Electric Compact NSX160F circuit breaker is designed for AC and DC applications, offering robust protection for electrical systems. This 1-pole unit features a TMD trip unit rated for 125 Amperes and a breaking capacity of 18 kA at 240 VAC, making it suitable for demanding industrial environments.

Technical details

• Series: Compact NSX
• Model: NSX160F
• Configuration: 1 Pole
• Trip Unit Type: TMD
• Current Rating: 125 A
• AC Voltage Rating: Up to 240 VAC
• DC Voltage Rating: Not specified; verify with manufacturer datasheet for DC application limits.
• Interrupting Capacity: 18 kA at 240 VAC
• Terminal Type: Screw terminals

Applications & compatibility

This circuit breaker is commonly employed in motor control centers, power distribution panels, and machinery requiring reliable overcurrent protection. It is compatible with various Schneider Electric NSX accessories for enhanced functionality and integration into existing electrical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438669 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
