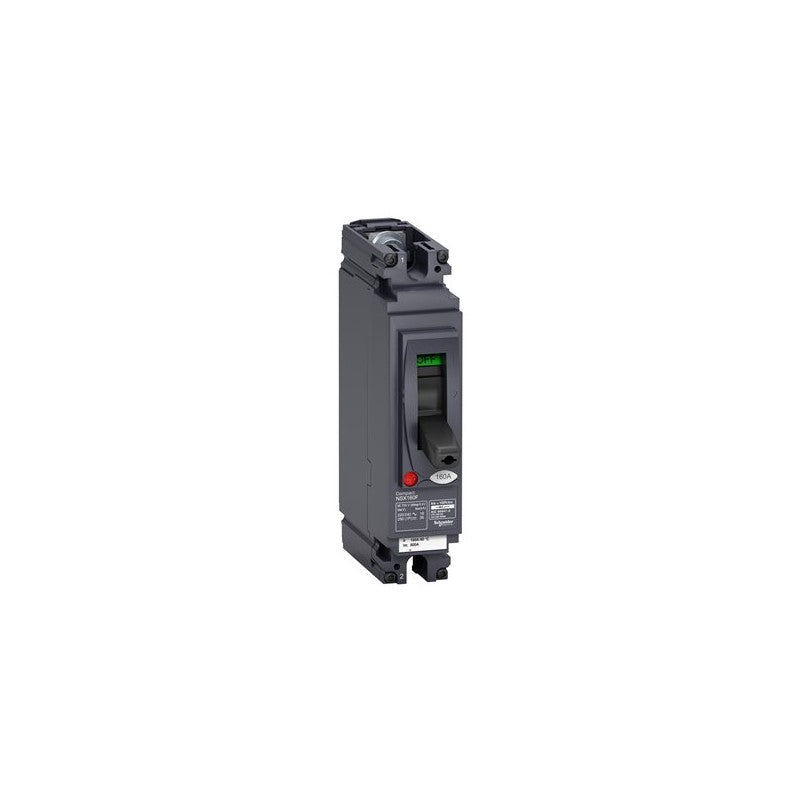

The Schneider Electric Compact NSX160F is a 1-pole circuit breaker designed for AC and DC applications. This model features a TMD trip unit rated for 160 Amperes and offers a breaking capacity of 18 kA at 240 VAC. It is commonly integrated into power distribution systems and motor control circuits within industrial facilities.

Technical details

• Series: Compact NSX
• Model: NSX160F
• Configuration: 1 Pole
• Trip Unit Type: TMD
• Current Rating: 160 A
• AC Voltage Rating: Up to 240 VAC
• DC Voltage Rating: Not specified in provided information; verify with manufacturer datasheet.
• Breaking Capacity: 18 kA at 240 VAC
• Connection Type: 1d (refer to manufacturer documentation for specific terminal configuration)

Applications & compatibility

This circuit breaker is suitable for protecting electrical circuits in a variety of industrial settings, including manufacturing plants, control panels, and power distribution units. It is compatible with systems requiring reliable overcurrent and short-circuit protection for single-pole circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438670 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
