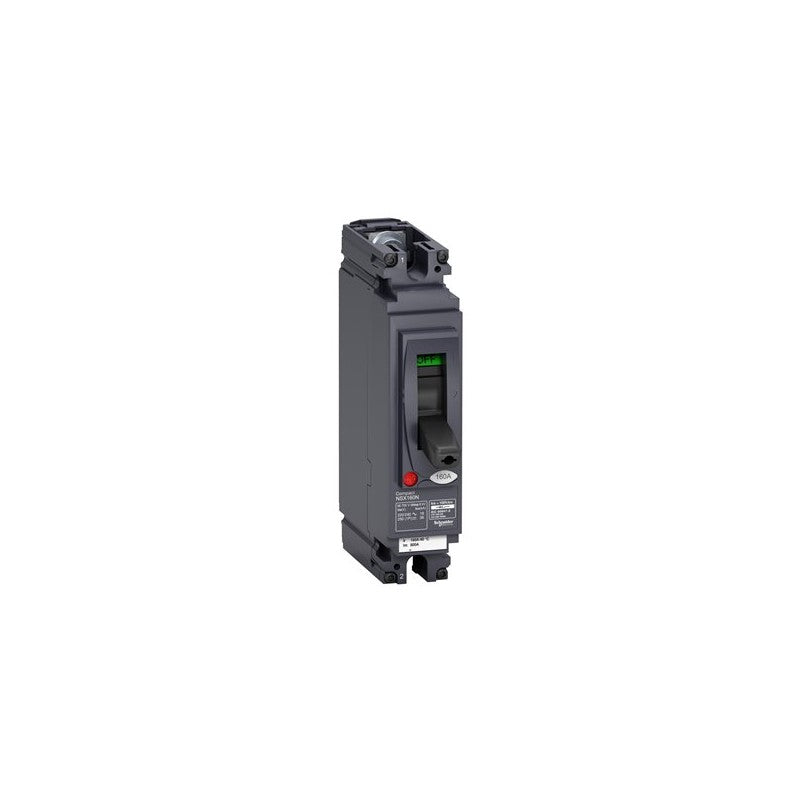

The Schneider Electric Compact NSX160N is a 1-pole circuit breaker designed for AC and DC applications. This unit features a TMD trip unit rated for 125 Amperes and offers a breaking capacity of 25 kA at 240 VAC. It is commonly integrated into power distribution systems and motor control circuits within industrial facilities.

Technical details

• Series: Compact NSX
• Model: NSX160N
• Poles: 1
• Trip Unit Type: TMD
• Current Rating: 125 A
• AC Voltage Rating: Up to 240 VAC
• DC Voltage Rating: Not specified, verify with manufacturer datasheet
• Breaking Capacity: 25 kA at 240 VAC
• Configuration: 1 pole, 1d (likely refers to a specific internal configuration or accessory slot, verify with datasheet)

Applications & compatibility

This circuit breaker is suitable for use in various industrial environments, including manufacturing plants, food and beverage processing, and water treatment facilities. It is designed to protect electrical circuits in applications such as motor control centers, power distribution panels, and machinery control systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV438679 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
