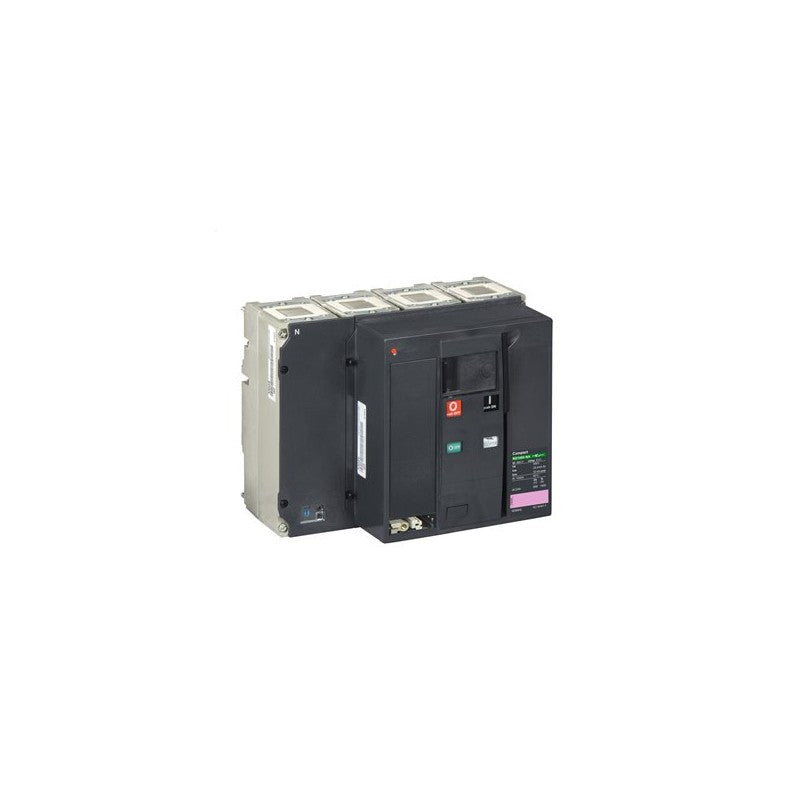

The Schneider Electric Compact NSX1000NA DC PV is a 4-pole switch-disconnector designed for DC photovoltaic applications. This unit provides reliable circuit isolation and protection, essential for the safe operation of solar power systems. Its robust construction ensures performance in demanding environments.

Technical details

• Series: Compact NSX
• Type: Switch-disconnector
• Poles: 4
• Current Rating: 1000 A
• Application: DC Photovoltaic (PV)
• Voltage Class: Specific DC voltage rating should be verified against manufacturer datasheet.
• Interrupting Capacity: Specific DC breaking capacity should be verified against manufacturer datasheet.
• Terminal Type: Verify terminal configuration and size against manufacturer datasheet.

Applications & compatibility

This switch-disconnector is specifically engineered for use in DC combiners and string protection systems within solar power installations. It is compatible with various DC power distribution panels and inverters commonly found in commercial and utility-scale solar farms. Ensure compatibility with your specific system voltage and current requirements by consulting the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV453425 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
