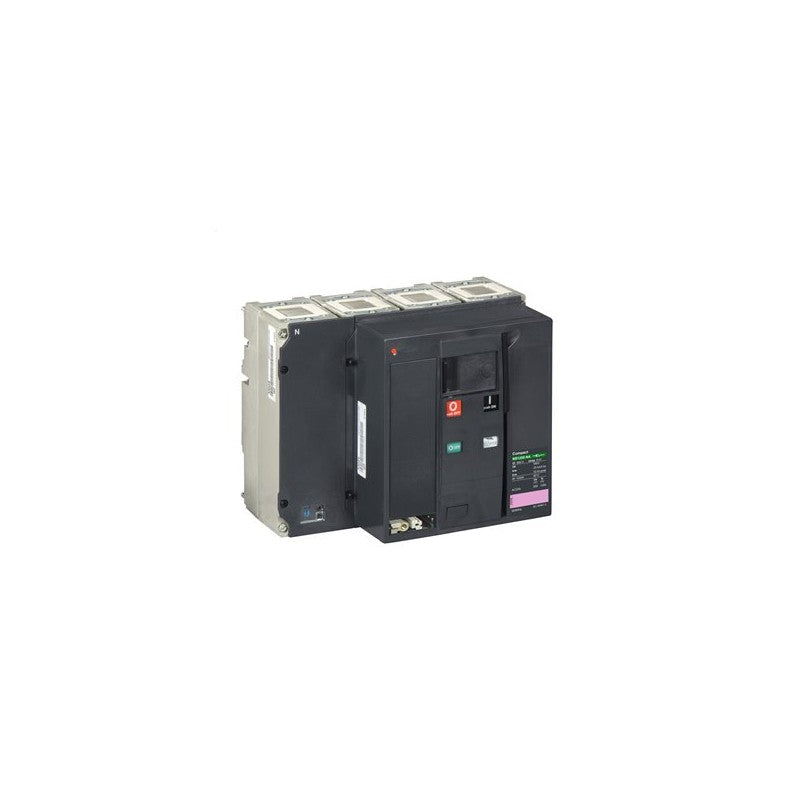

The Schneider Electric Compact NSX1250NA DC PV is a 4-pole switch-disconnector designed for DC photovoltaic applications. This unit is rated for 1250 Amperes, providing robust circuit protection and isolation in solar power systems. Its design focuses on safety and reliability for demanding DC environments.

Technical details

• Series: Compact NSX
• Model Designation: NSX1250NA DC PV
• Number of Poles: 4P
• Current Rating: 1250 A
• Application: DC Photovoltaic (PV)
• Switching Function: Switch-disconnector
• Voltage Class: DC (Specific voltage rating requires datasheet verification)
• Interrupting Capacity: (Requires datasheet verification)

Applications & compatibility

This switch-disconnector is engineered for use in DC combiners, inverters, and other critical components within solar power generation systems. It ensures safe isolation for maintenance and fault management in photovoltaic arrays. Compatibility extends to systems requiring high-current DC switching and protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV453427 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
