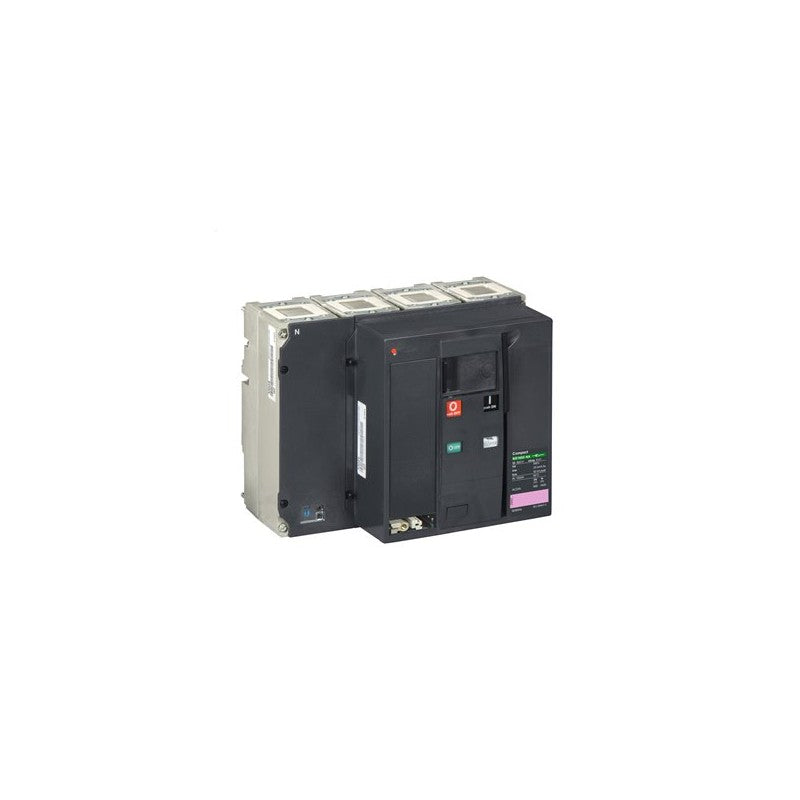

The Schneider Electric Compact NSX1600NA DC PV is a 4-pole switch-disconnector designed for DC photovoltaic applications. This unit is rated for 1500 Amperes, providing robust circuit protection and isolation in high-power solar installations. Its construction is optimized for the demanding environments typical of renewable energy systems.

Technical details

• Series: Compact NSX
• Type: Switch-disconnector
• Poles: 4P
• Current Rating: 1500 A
• Application: DC Photovoltaic (PV)
• Voltage Class: Specific DC voltage rating should be verified against the manufacturer's datasheet for this model.
• Interrupting Capacity: Specific DC interrupting capacity should be verified against the manufacturer's datasheet for this model.
• Terminal Type: Verify terminal configuration and size against the manufacturer's datasheet.

Applications & compatibility

This switch-disconnector is engineered for use within DC combiners, inverters, and other critical junction points in large-scale solar farms and commercial photovoltaic systems. It ensures safe and reliable isolation for maintenance and fault management, contributing to the overall safety and efficiency of solar power generation infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV453429 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
