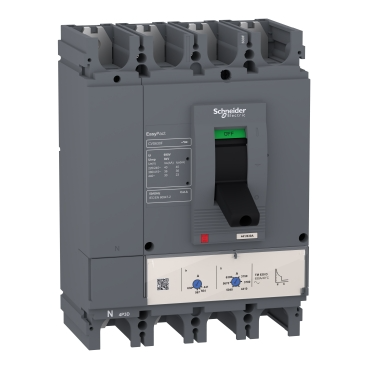

The Schneider Electric LV563308 is a 4-pole circuit breaker from the Easypact CVS series, specifically designated as a CVS630F TM500D model. This unit is designed for robust electrical protection in industrial environments, commonly integrated into power distribution panels and motor control centers. Its 4-pole configuration ensures complete isolation of all phases and the neutral conductor.

Technical details

• Series: Easypact CVS
• Model Designation: CVS630F TM500D
• Number of Poles: 4P (4-pole)
• Trip Unit Type: TM500D
• Current Rating: 500 Amperes (derived from TM500D designation)
• Frame Size: 630 Amperes (derived from CVS630F designation)
• Interrupting Capacity: Specific rating requires datasheet verification; typically indicated by a suffix in the part number or separate specification.
• Voltage Rating: Requires datasheet verification; typically 400/415V AC for this class of breaker.

Applications & compatibility

This circuit breaker is suitable for use in a wide range of industrial applications requiring reliable overcurrent and short-circuit protection. It is commonly found in power distribution systems for manufacturing plants, data centers, and commercial buildings. Compatibility extends to systems utilizing Schneider Electric's Easypact CVS breaker family for integrated protection solutions.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV563308 or contact our technical team for cross-reference assistance with compatible Easypact CVS components.
